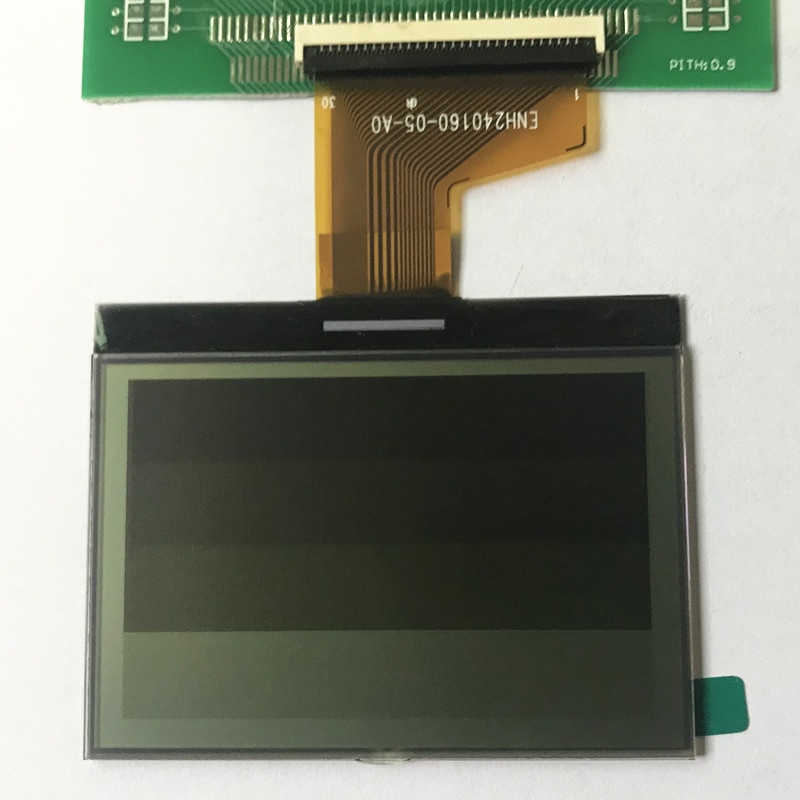

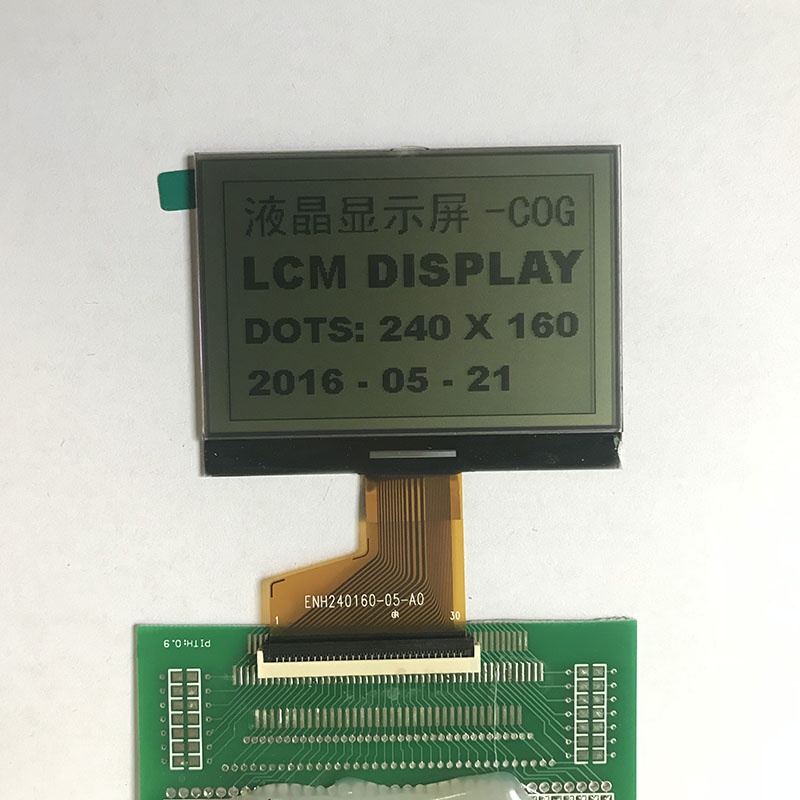

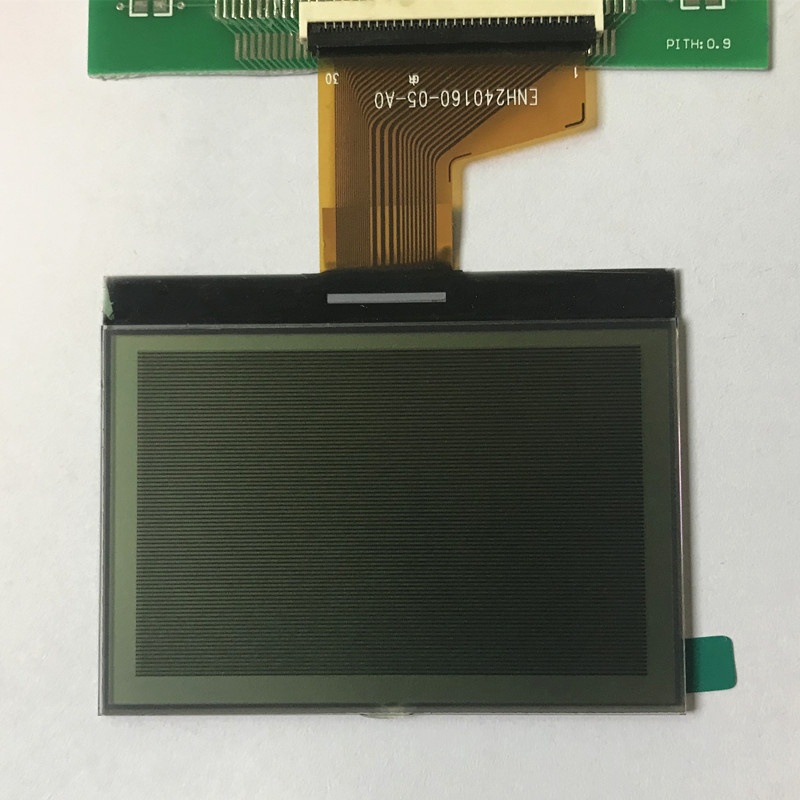

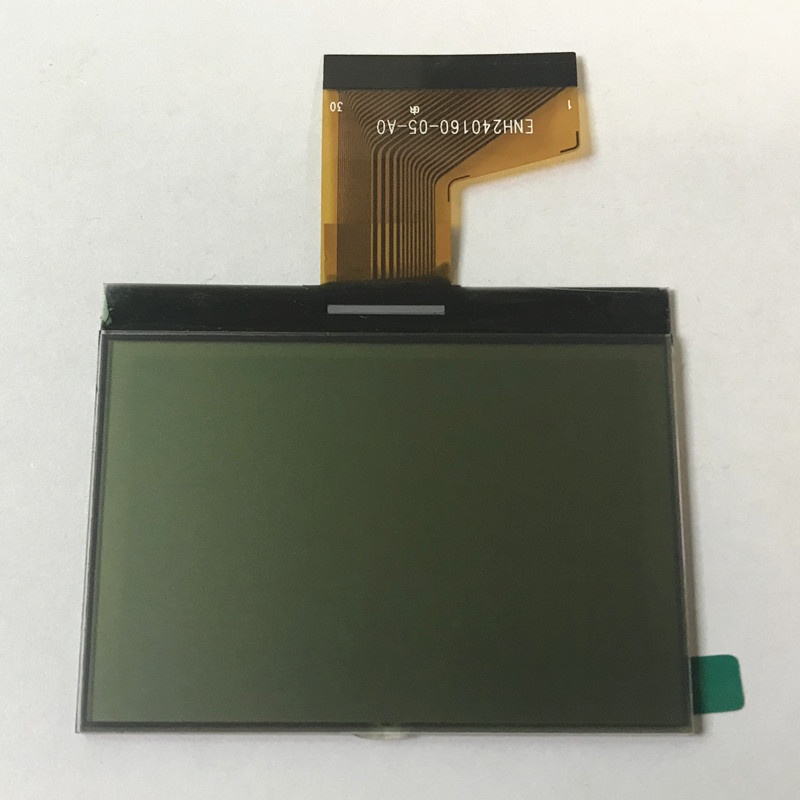

240x160 Graphic Monochrome LCD Display
240x160 Graphic Monochrome LCD Display 240x160 Graphic Monochrome LCD Display 240x160 Graphic Monochrome LCD Display 240x160 Graphic Monochrome LCD Display
Product name : 240x160 Graphic Monochrome LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Description



Add some dazzle to your project with this 240*160 resolution LCD module, it is a great choice when you need monochrome and sharp detail while using minimal front panel space. This 240x160 LCD display is built in with UC1611S IC.

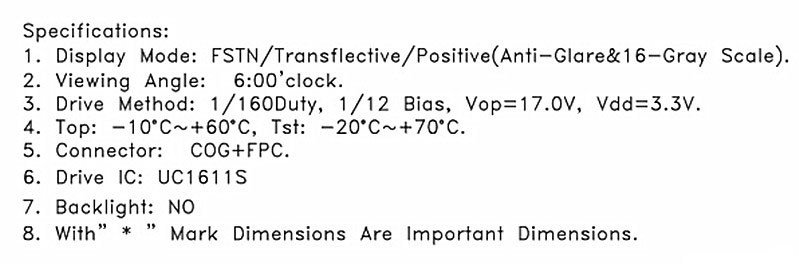

Key Features

240x160 Graphic Monochrome LCD Display

Resolution

240*160

Outline Size

51*66.6 mm

Viewing Area

40.5*61 mm

Active Area

37.585*58.065 mm

VDD

3.3V

Driver IC

UC1611S

Backlight

NO

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/16 duty, 1/12 bias

Top

-10℃ To + 60℃

Tst

-20℃ To + 70℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

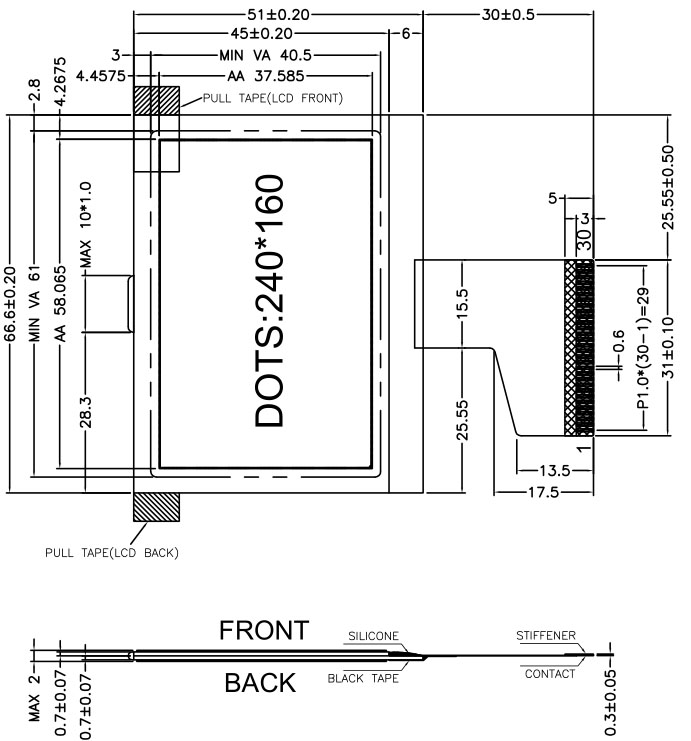

LCD Drawing

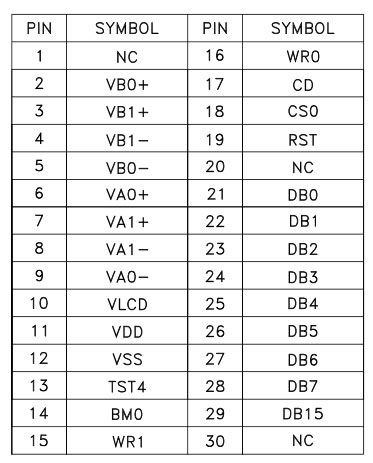

PIN Definition

Advantages

1. OEM is accepted.

2. Custom Various LCD display module Available.

3. Custom LED Backlight Color Available.

4. Variuos Temperature Range Available.

5. Any question or problem will be replied in 12 hours.

6. 24-hour hotline Available.
