Products > Segment LCD > > Segment LCD Display Module
Segment LCD Display Module
Segment LCD Display Module Segment LCD Display Module Segment LCD Display Module Segment LCD Display Module
Product name : Segment LCD Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Description



There are many advantages to using a seven segment display as your product’s LCD solution. These include:

• Low cost
Compared to other LCD screen technology, segmented displays offer a low cost custom solution for high volume applications.

• High contrast
By design, a segmented display screen showcases dynamic contrast between visible and hidden elements.

• Low power consumption
This display type requires minimal power making it ideal for battery-powered devices.



Here is the one of the segment LCDS for your reference.

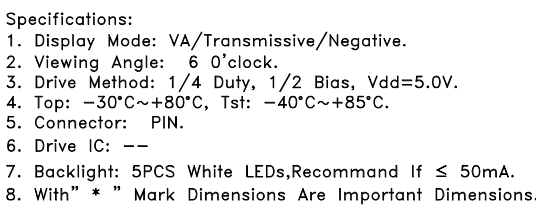

Information

Segment LCD Display Module

Outline Size

75*59 mm

Viewing Area

63*54 mm

Connector

PIN

Driver IC

NO

Backlight

WLED

Display Mode

VA, Transmissive, Negative

Viewing Angle

6:00

Drive Method

1/4 duty, 1/2 bias

Top

-30℃ TO + 80℃

Tst

-40℃ To + 80

Operating Voltage

VDD=5.0V

RoHS Compliant

Yes

Please contact us for datasheet and programming.

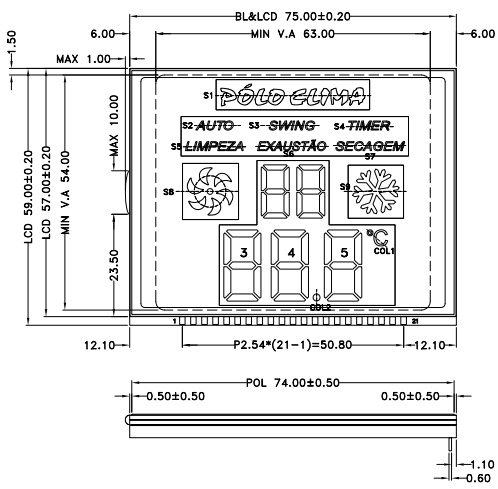

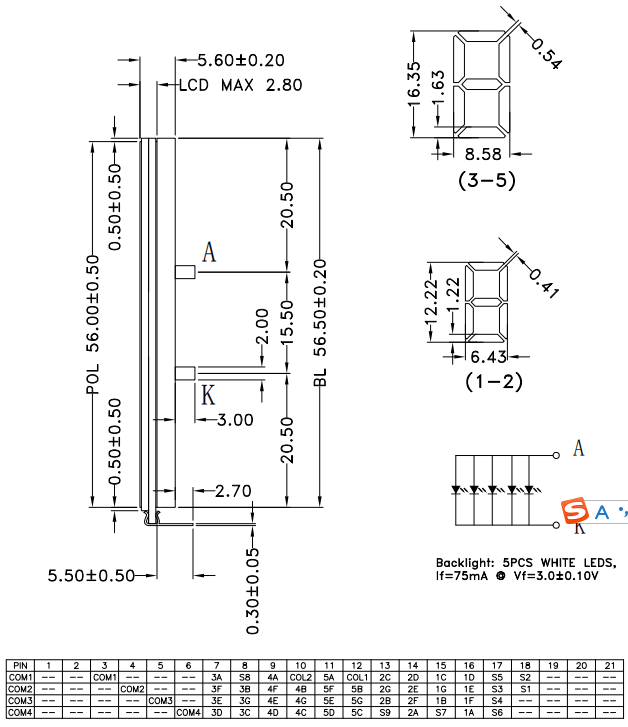

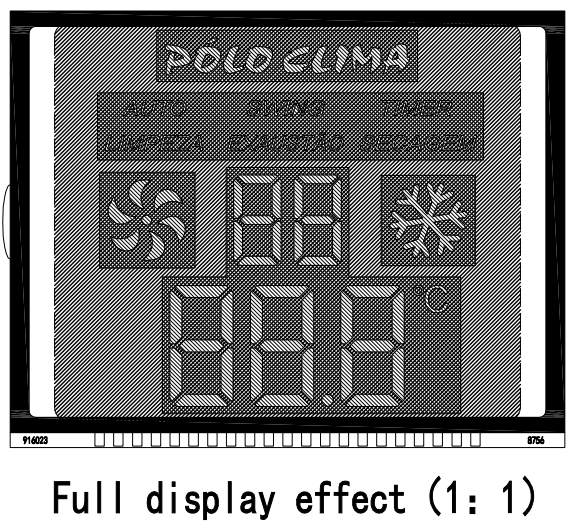

LCD Drawing

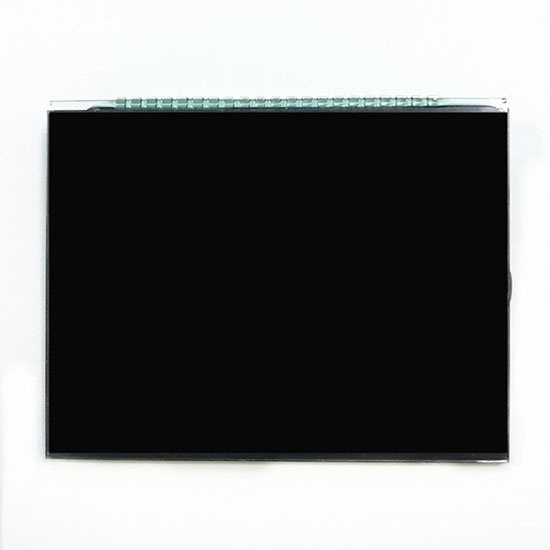

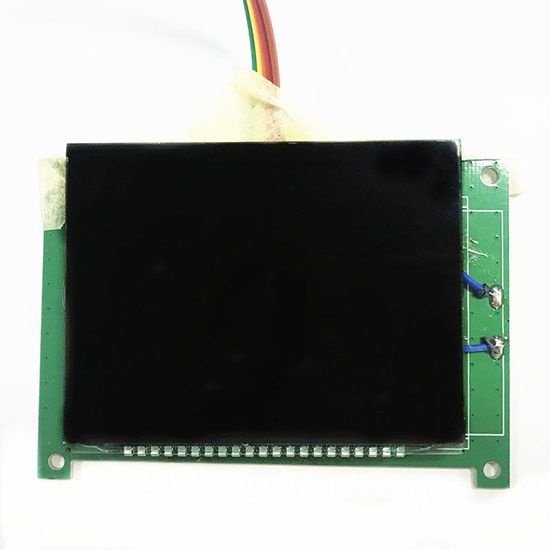

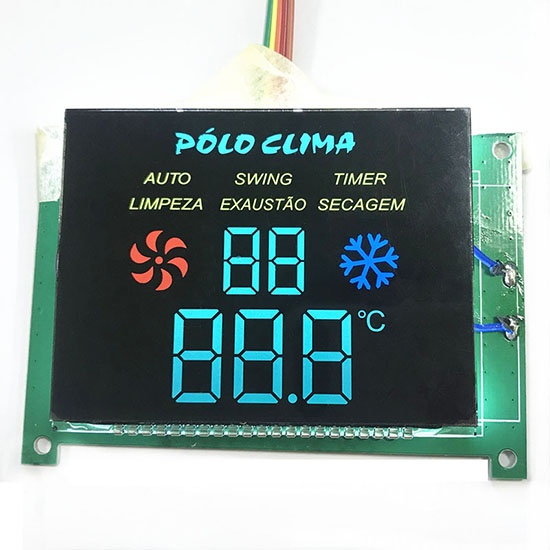

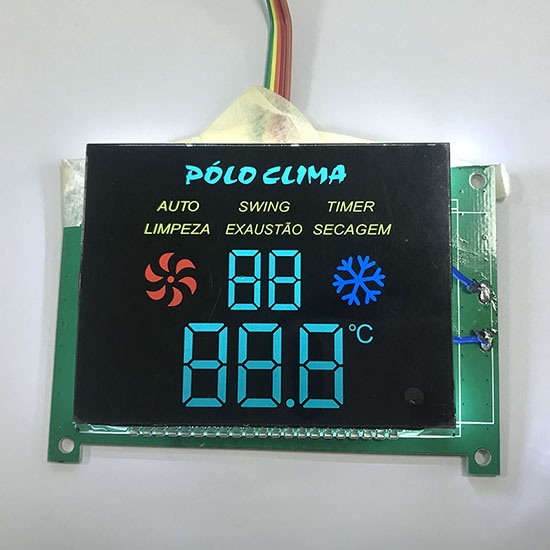

Image Details



Application

>HouseHold Application

>Industrial Control

>Security Control System

>Electronics Office Equipment

>Car Industrial Display

>Fitness Equipment

>Medical Device

>Health Equipment

>...



Packaging & Shipping



-Packaging Detail: Wrapped in air bubble film and covered by anti-static trays, and then packed in suitable cartons. The packing is able to withstand rough handling. External carton size: 390x350x490mm



-Delivery Detail: 7-25 working days after payment confirmed.



-Shipping (air): DHL, Fedex, UPS, sea shipping, please let me know which one do you prefer.
