Products > Graphic LCD > > Small Backlight Sunlight Readable LCD Display
Small Backlight Sunlight Readable LCD Display
Small Backlight Sunlight Readable LCD Display Small Backlight Sunlight Readable LCD Display Small Backlight Sunlight Readable LCD Display Small Backlight Sunlight Readable LCD Display
Product name : Small Backlight Sunlight Readable LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



This 128x64 graphic LCD display module (ENH-DG128064-10-YFPTYF) is thin, light, low-power, and LED backlight. This display is visible in all lighting situations, from darkness, normal office lighting, and even bright sunlight, making it an excellent sunlight/daylight readable LCD solution.



This graphic LCD is a yellow-green transmissive, positive-mode display, the backlight may be turned off when there is sufficient ambient light to read the display. Turning the backlight off will further reduce the already super-low power consumption. This display is well suited for compact hand-held devices, or any application where a lot of display in a very small area is needed.



This LCD display has an integrated controller and voltage generating components mounted on the flexible tail.

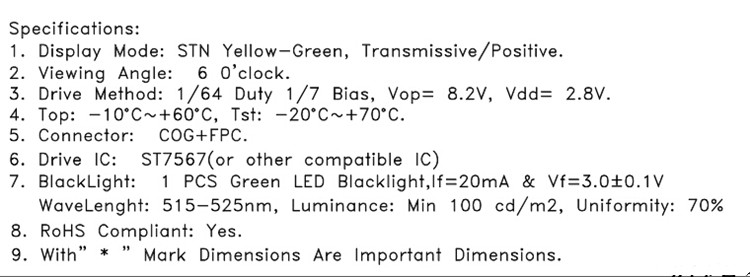

Details of LCD

Small Backlight Sunlight Readable LCD Display

Resolution

128*64

Outline Size

73.3*39.5 mm

Viewing Area

53.60*28.60 mm

Active Area

48.61*24.93 mm

Connector

COG+FPC

Driver IC

ST7567

Backlight

1 Green LED

Display Mode

STN (yellow-green), Transmissive, Positive

Viewing Angle

6:00

Drive Method

1/64 duty, 1/7 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

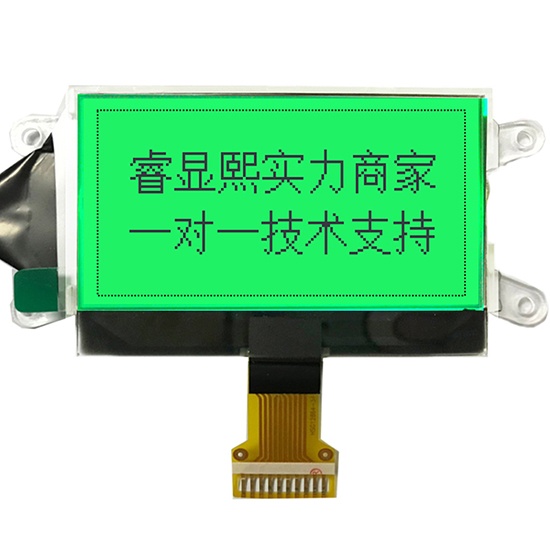

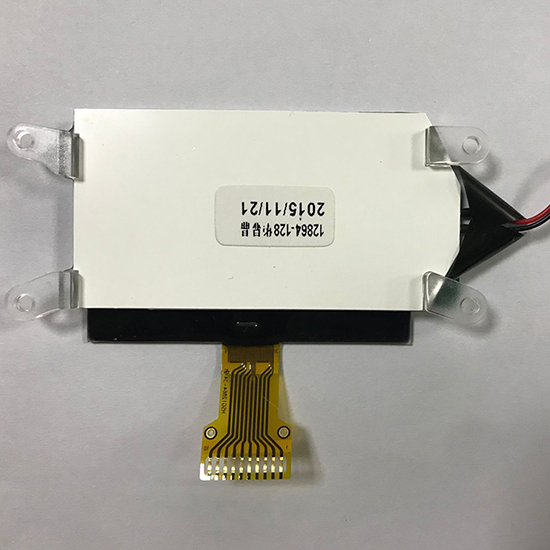

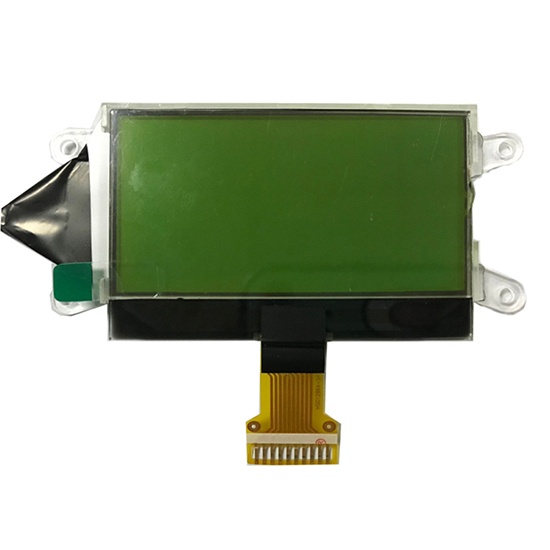

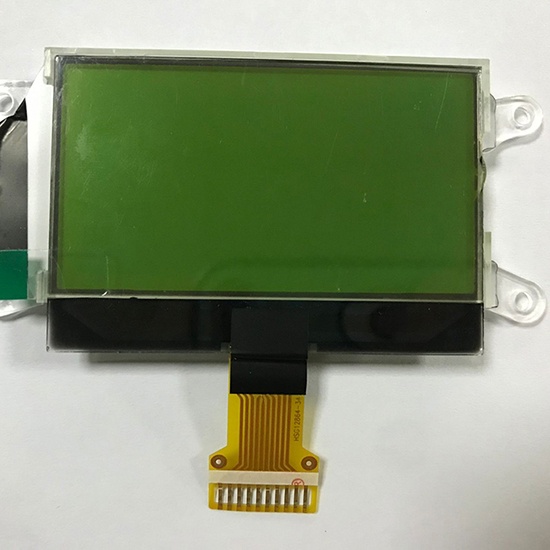

LCD Image Details

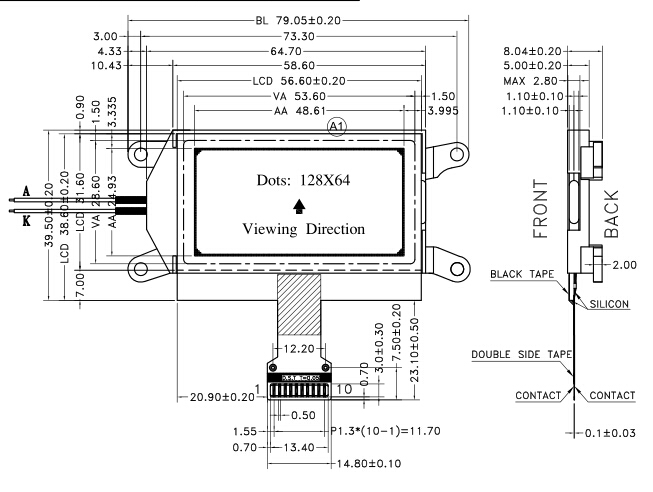

LCD Drawing

FAQ

1.Can you send me your catalogue?

Yes. Please contact us; we can share with you our catalog by dropbox.



2.What is your price and discount?

The above price is our wholesale price. If you'd like to know more our discount policy,please feel free to contact us.



3.What is your pilicy of warranty?

We provide 1 year's warranty for our product.



4.What is your packing way?

Neutral packing and accept customer's special packaging demand. We can make an invoice as you want to help you save money.
