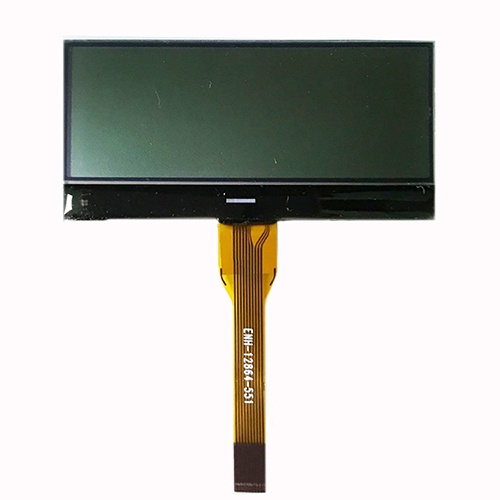

128x64 Monochrome LCD Display with White Backlight
128x64 Monochrome LCD Display with White Backlight 128x64 Monochrome LCD Display with White Backlight 128x64 Monochrome LCD Display with White Backlight 128x64 Monochrome LCD Display with White Backlight
Product name : 128x64 Monochrome LCD Display with White Backlight
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



This display supports, parallel, I2c, and SPI interfaces. We powered it up using an 3.0v STM32 and a small break-out board. This little LCD uses the super common ST7567 integrated controller.

Check out the schematic in the data sheet to see how to wire this monochrome display to your microcontroller. You'll need a few easily sourced components.

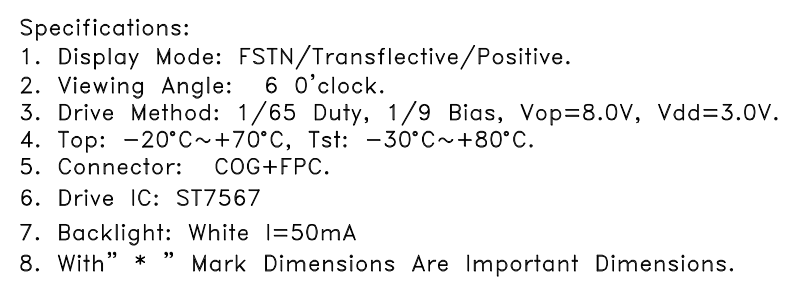

Functions & Features

128x64 Monochrome LCD Display with White Backlight

Outline Size

63x30.7 mm

View Area

60x21.7 mm

Active Area

55.02x19.82 mm

Resolution

128x64

Display Mode

FSTN/Transflective/Positive

View Angle

6:00

Drive Method

1/65 duty, 1/9 bias

VOP

8.0V

VDD

3.0V

TOP

-20- +70

TST

-20- +70

Drive IC

ST7567

Back-light

White LED

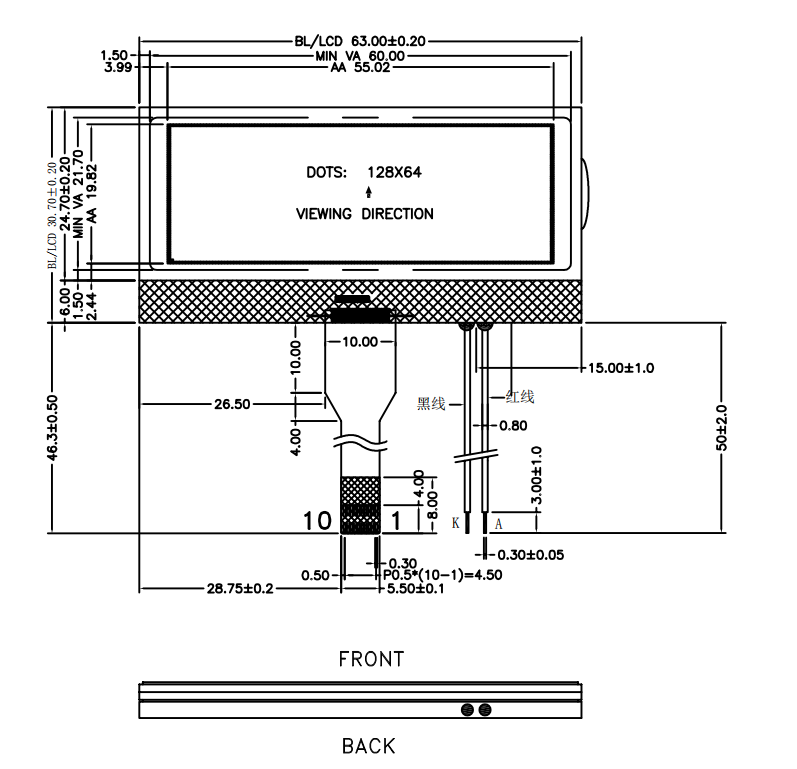

Physical Size

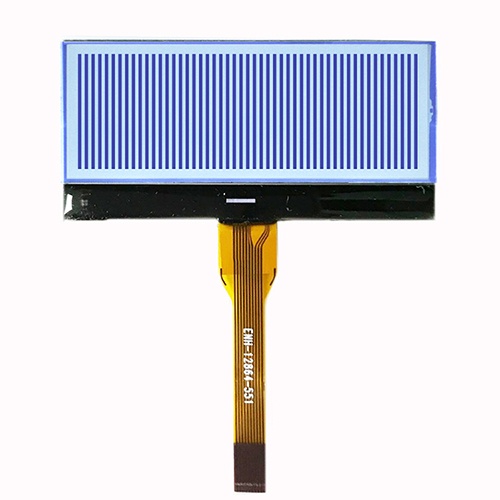

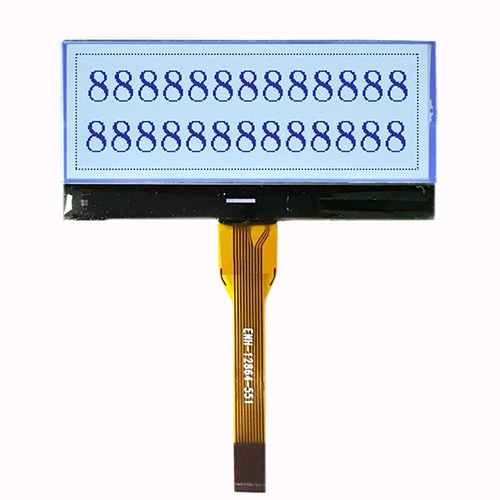

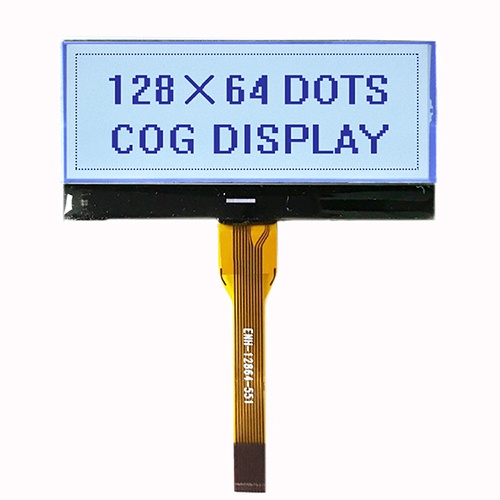

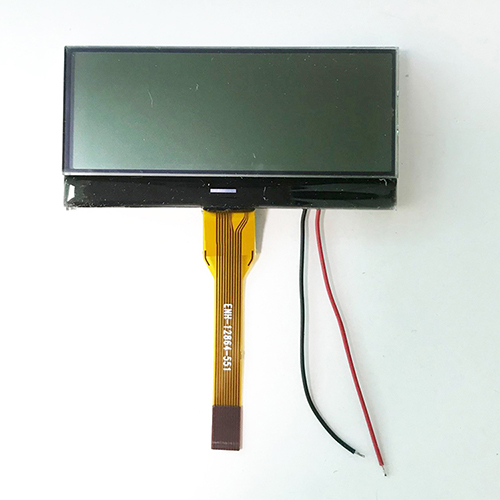

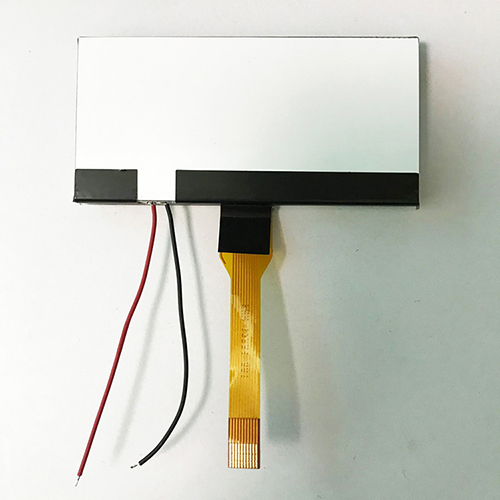

Image Details

Application of Our LCD Screens:

Our products are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.



More tft lcd model detail information including size, resolution, brightness, operating temperature or life time etc in contact me please.
