Products > Segment LCD > > Custom 7 Segment LCD Display Module with Backlight

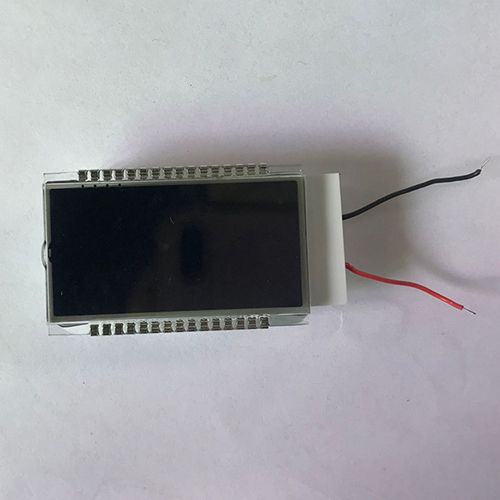

Custom 7 Segment LCD Display Module with Backlight
Custom 7 Segment LCD Display Module with Backlight Custom 7 Segment LCD Display Module with Backlight Custom 7 Segment LCD Display Module with Backlight Custom 7 Segment LCD Display Module with Backlight
Product name : Custom 7 Segment LCD Display Module with Backlight
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



Download our LCD Software. We provide software for you to test many types of LCDs including segment displays and graphic displays. Our segment and graphic LCD display modules can use CrystalControl2 to quickly set up the display.


All our LCD software is free to use and all our LCD displays come with open-source demonstration code.

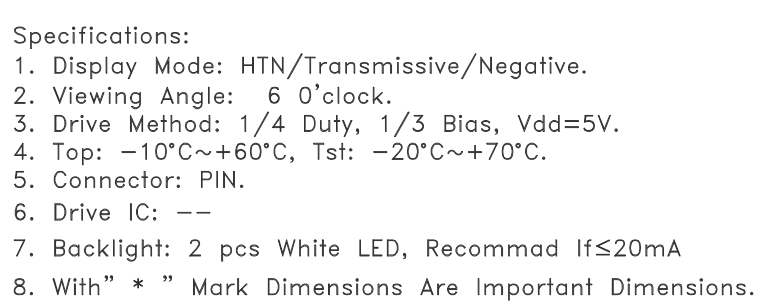

Specifications

Custom 7 Segment LCD Display Module with Backlight

Outline Size

43x27 mm

View Area

40x20 mm

Display Mode

HTN/Transmissive/Negative

View Angle

6:00

Drive Method

1/4 Duty, 1/3 Bias

VDD

3.0V

Top

-10 - +60

Tst

-20 - +70

Connector

PIN

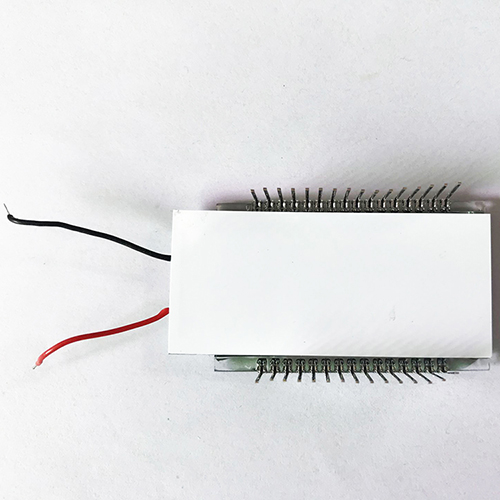

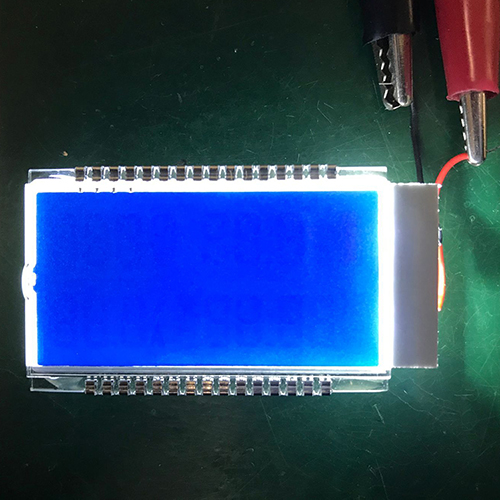

Backlight

White LED

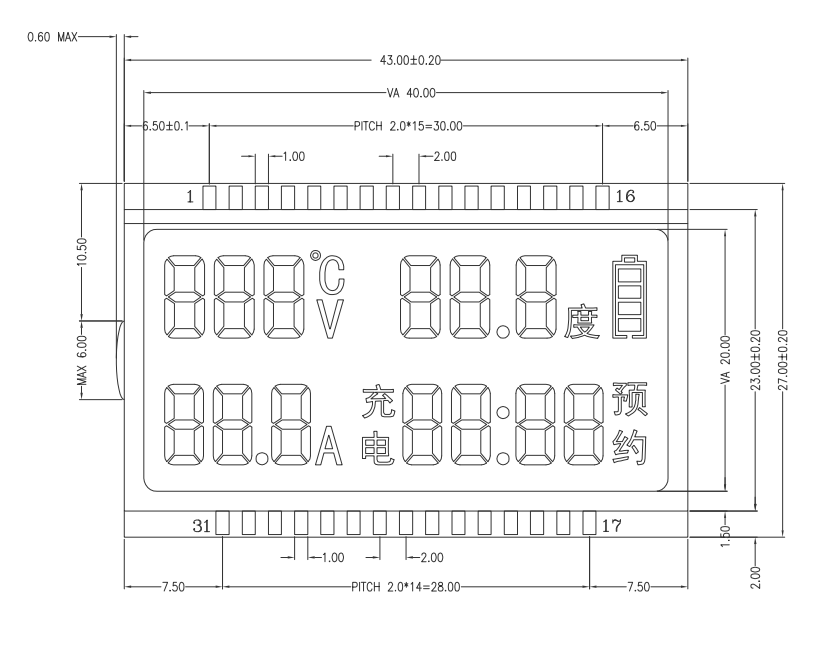

Note: Refer to Mechanical Drawing



Physical Size

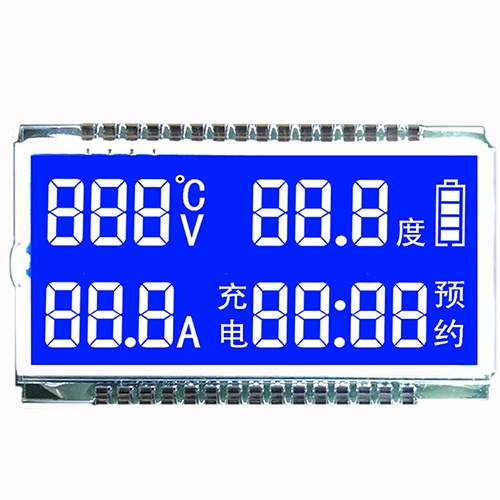

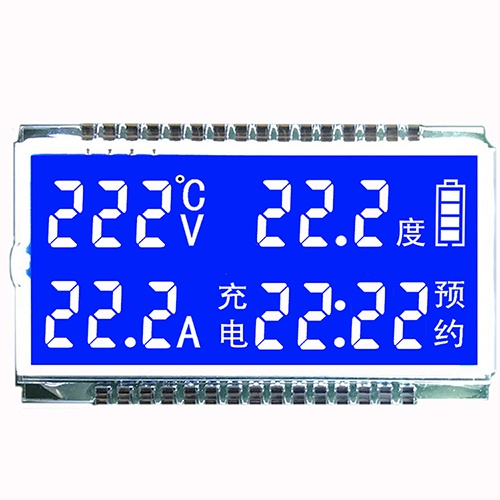

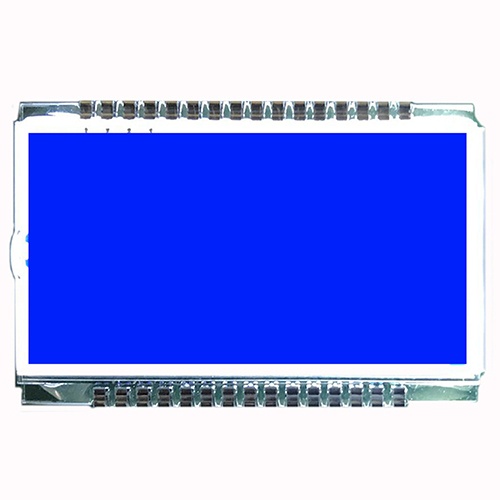

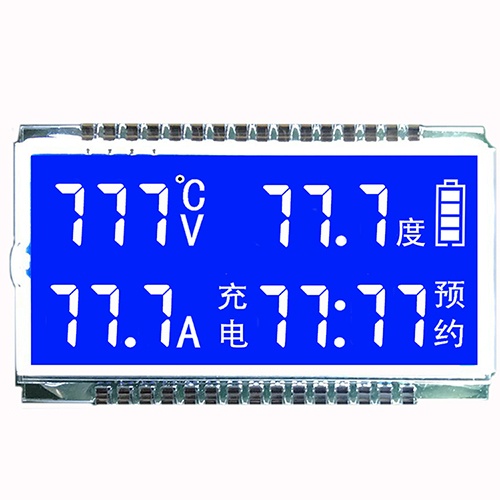

Detail Image

LCD Applications

Enrich TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.



Packaging Details

-Standard package, any requirements please let me know.

-Packed in anti-static bag, more safety.

-Wrap in air bubble film

-Put into foam box

-Packed with extra carton box, which make sure the goods safety in transportation.



FAQ

# Delivery time?

Normal order 3 working days after confirming your payment, samples will be take 3-7 days.

# MOQ?

No MOQ.

#After-sale service?

Leanna is always here for you!

#Other requirements?

Please share with your problems, we will be back you ASAP.
