Products > COG > > Very Thin COG LCD Display Module

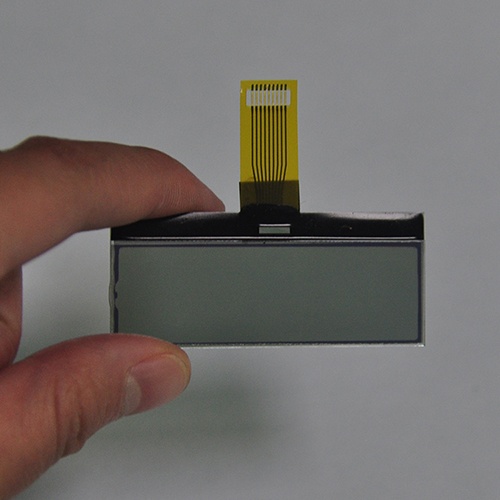

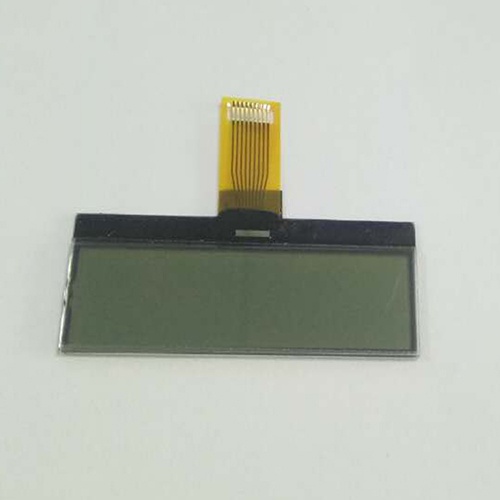

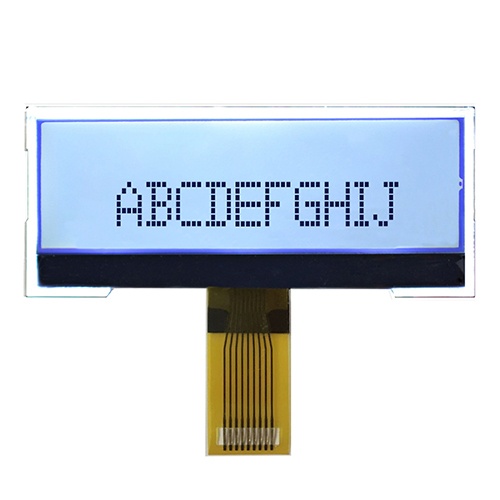

Very Thin COG LCD Display Module
Very Thin COG LCD Display Module Very Thin COG LCD Display Module Very Thin COG LCD Display Module
Product name : Very Thin COG LCD Display Module
             [Next Product]→
Online Inquiry         Email Us

  Details:

Description



We've got thousands of LCD displays perfect for your design. Whether you need a TFT, LCD, OLED display module, we carry them all. We also provide free world-class product support and a full complement of accessories; including touch screens, cables, development boards, and Arduino kits.



We often get asked, "What's your smallest display?". Enrich specializes in small displays, in fact the majority of our displays are smaller than 6". To make it easier for you to find the smallest LCD display, please contact us for more details.

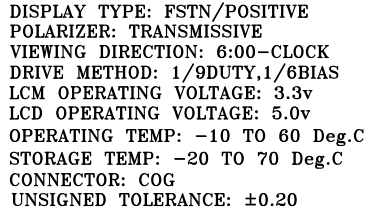

Specification

Very Thin COG LCD Display Module

Outline Size

52*15 mm

Viewing Area

45*15 mm

Active Area

43.95*10.88 mm

Connector

COG+FPC

Backlight

---

Display Model

FSTN, Transmissive, Positive

Viewing Angle

6:00

Drive Method

1/9 duty, 1/6 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

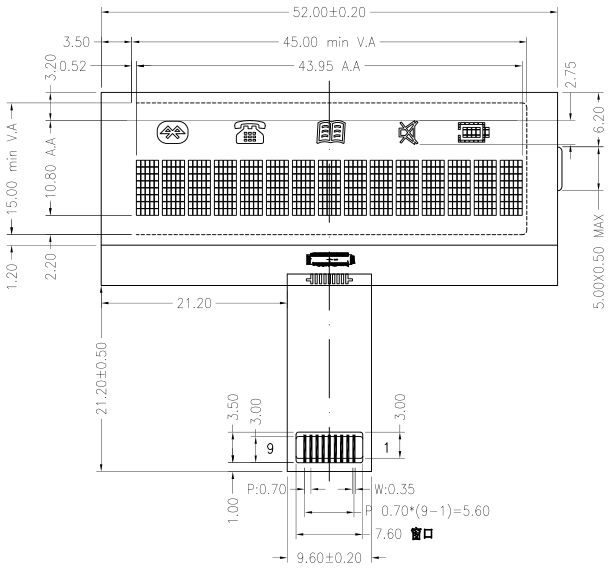

LCD Drawing

Image Details

FAQ

--What should I do if I receive a wrong part?

First, please make sure the part you purchase is the one what you need. If you do receive the damaged part because of the mistake on our side, please contact with us, we will assist you to replace the correct one for you.



--How long can I get reply after sending inquiry?

We will reply to you within 24 hours.
