Products > COG > > 132x32 Graphic LCD Display Module

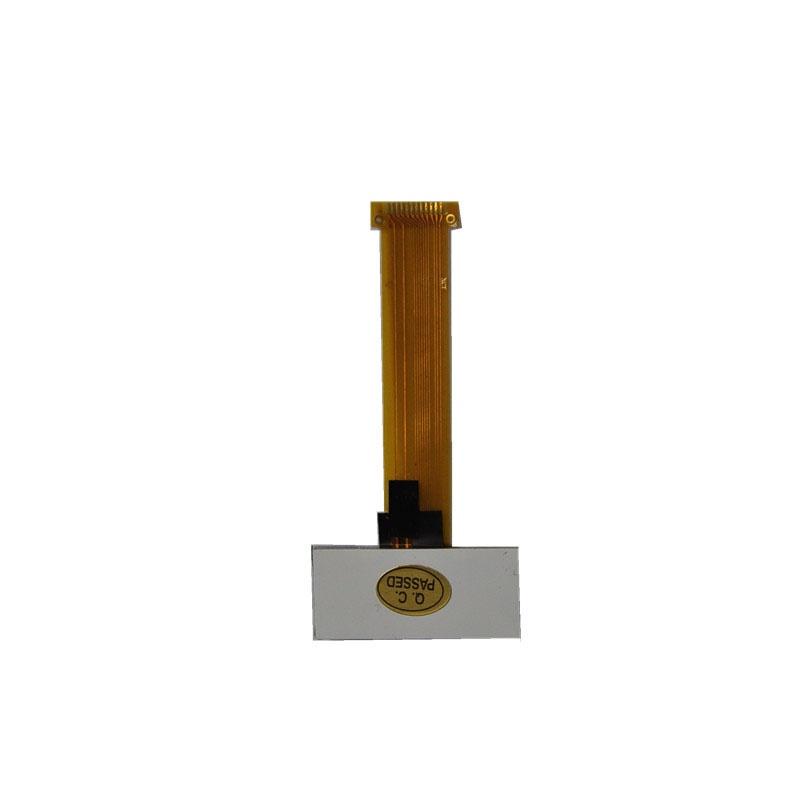

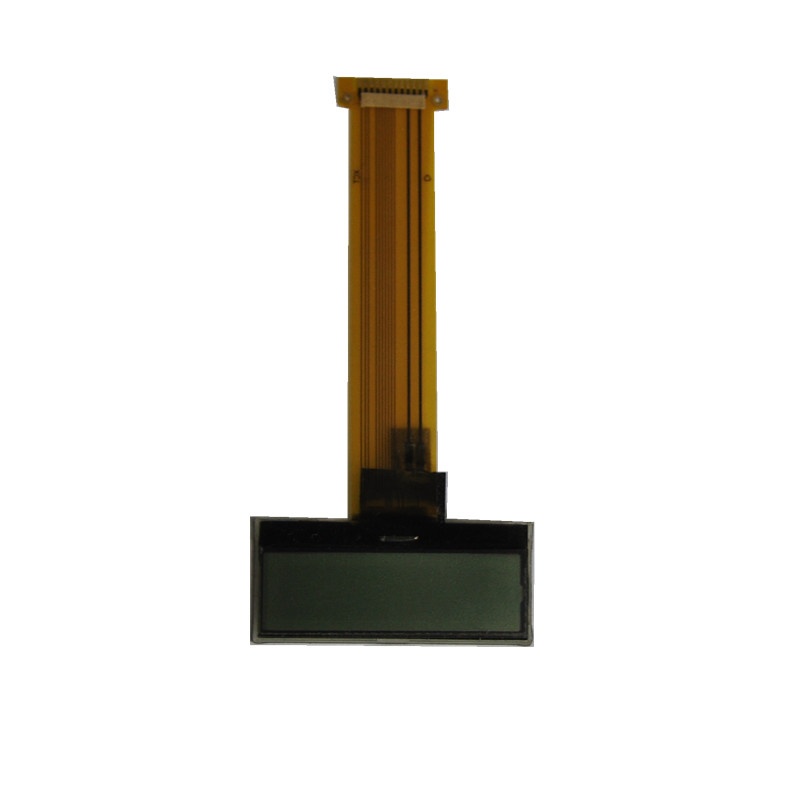

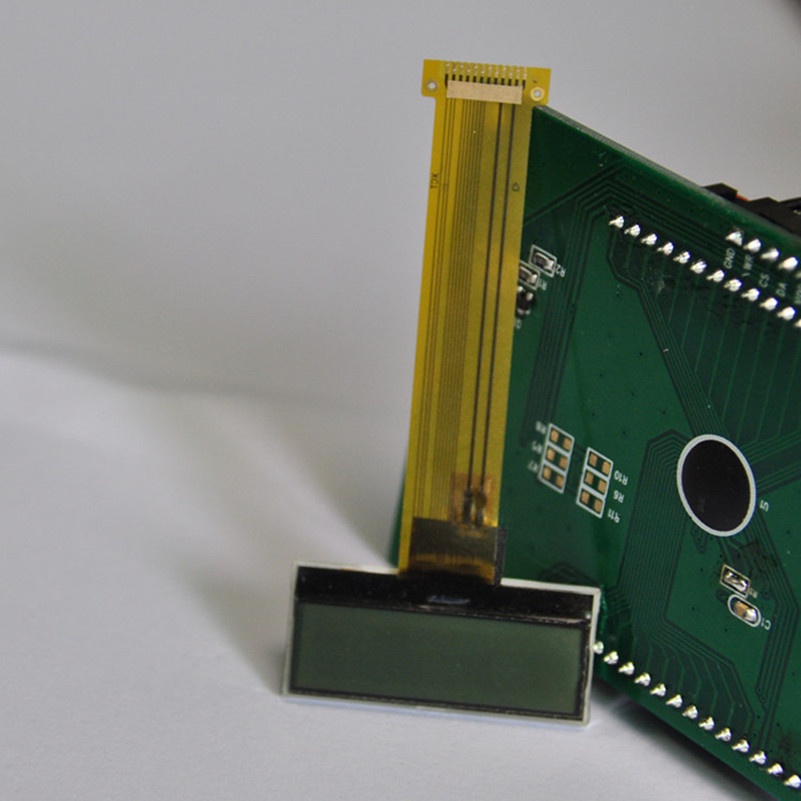

132x32 Graphic LCD Display Module
132x32 Graphic LCD Display Module 132x32 Graphic LCD Display Module 132x32 Graphic LCD Display Module
Product name : 132x32 Graphic LCD Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Description



132x32 graphic LCD module, available in several variations of backlight and polarizer (minimum order may be required).

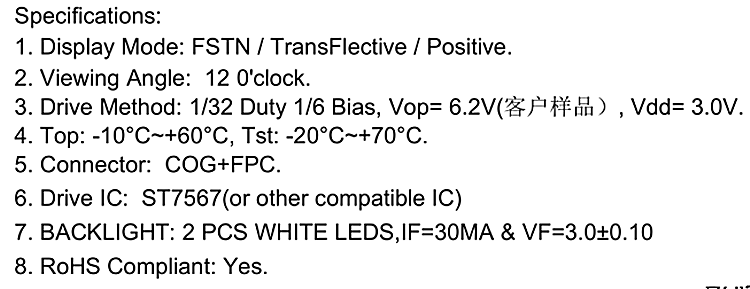

Specification

132x32 Graphic LCD Display Module

Resolution

132*32

Outline Size

35.5*16 mm

Viewing Area

31.9*9.5 mm

Active Area

29.02*7.02 mm

Connector

COG+FPC

Driver IC

ST7567(or compatible IC)

Backlight

WLED

Display Mode

FSTN, Transflective, Positive

Viewing Angle

12:00

Drive Method

1/32 duty, 1/6 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

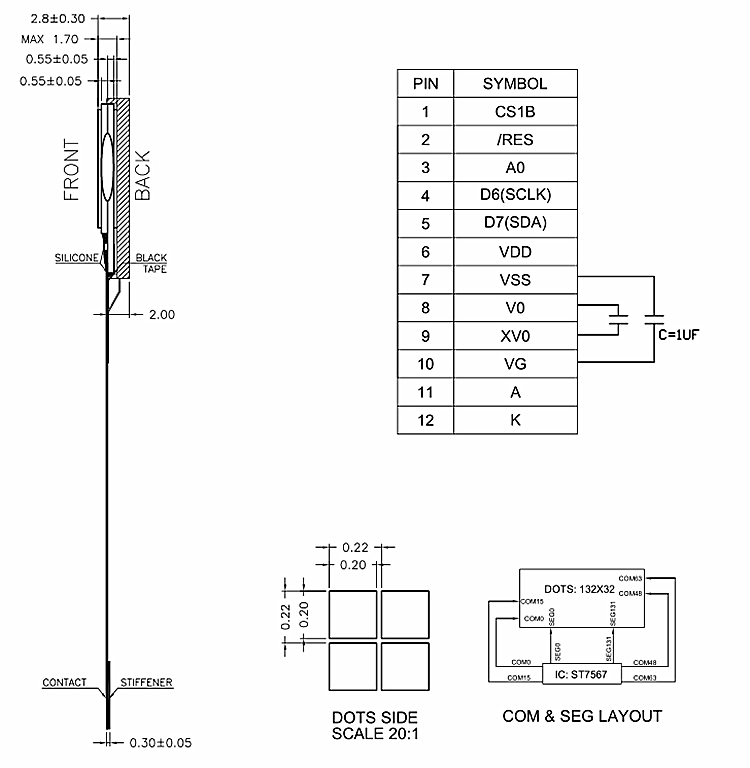

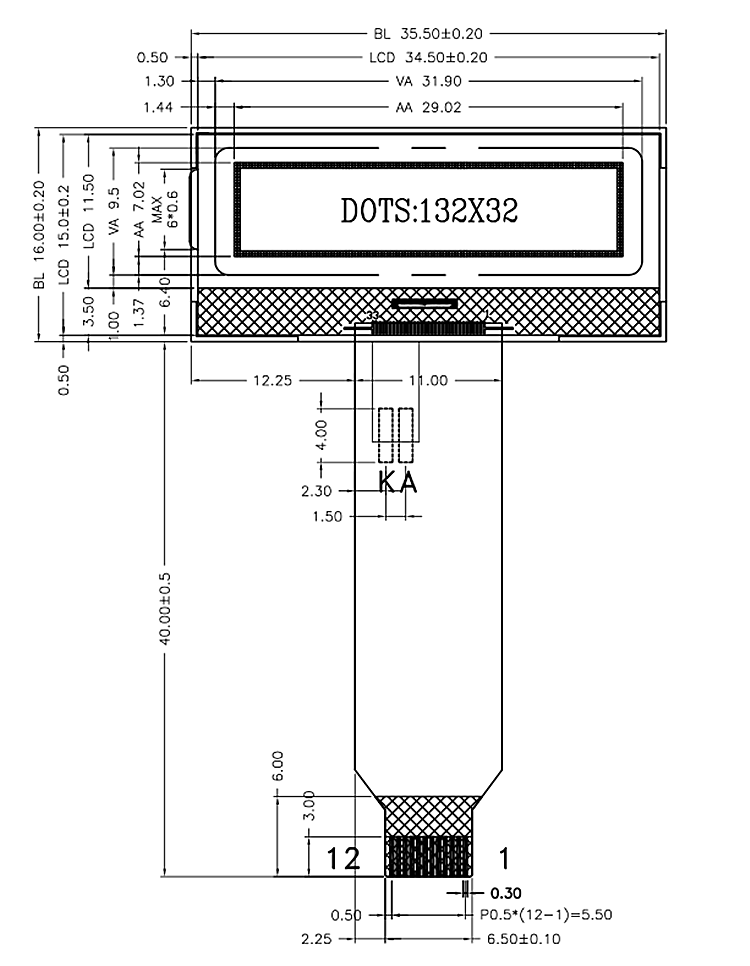

LCD Drawing
