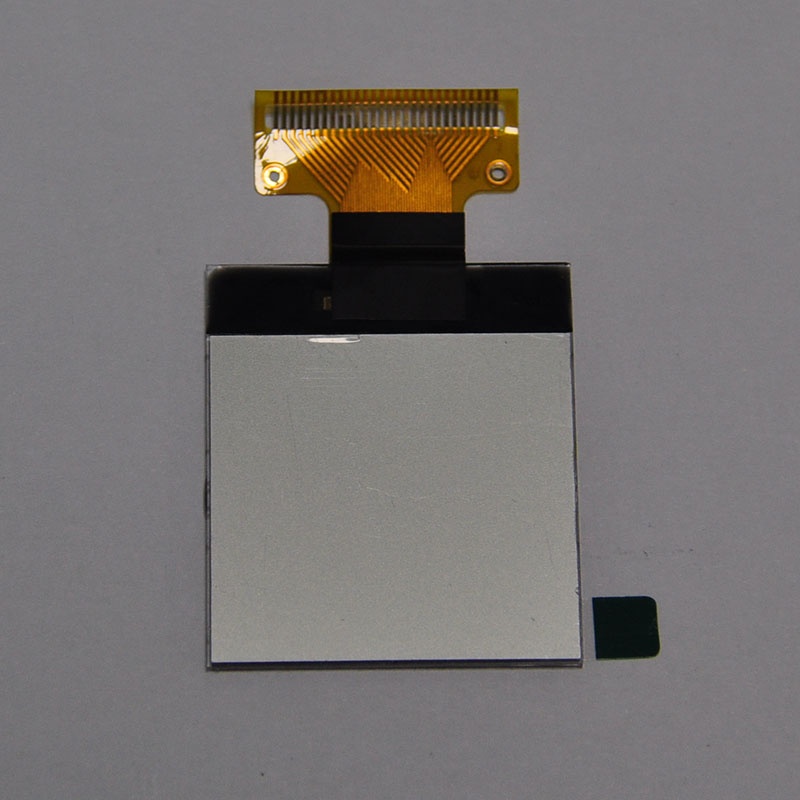

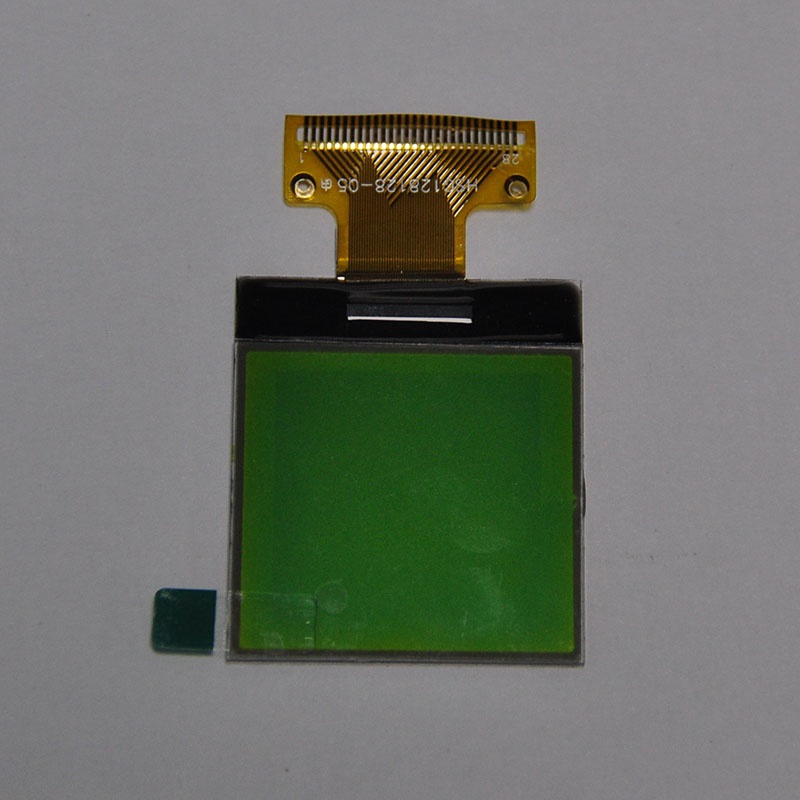

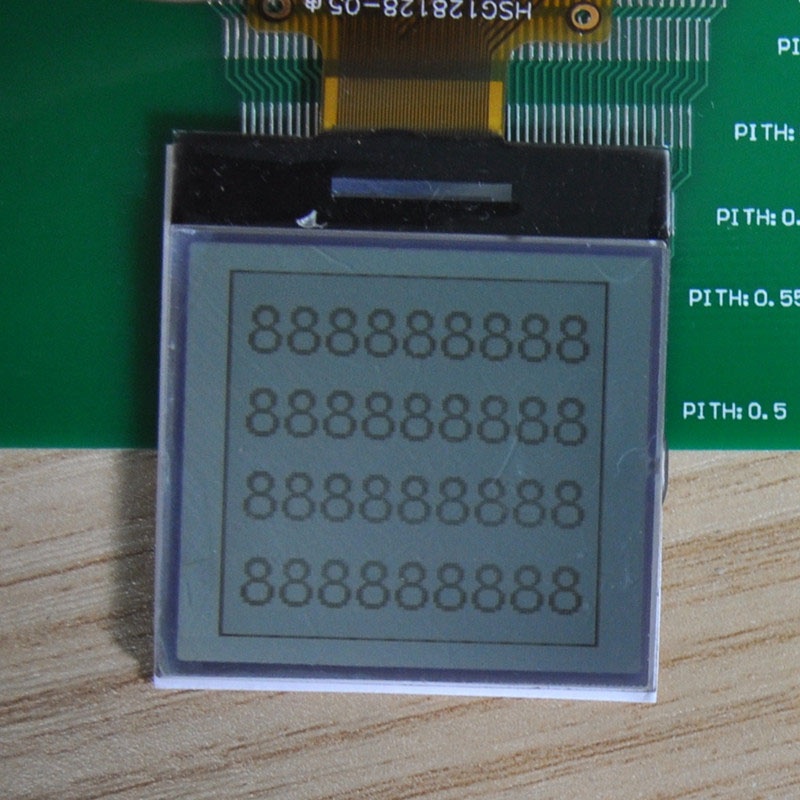

128x128 Chinese LCD Display Module
128x128 Chinese LCD Display Module 128x128 Chinese LCD Display Module 128x128 Chinese LCD Display Module 128x128 Chinese LCD Display Module
Product name : 128x128 Chinese LCD Display Module
Product No. : 2018816113524
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



We designed this 128 x 128 graphic LCD display module so it fits on the face of 1.5-inch wide devices such as blade servers, disk drive carriers, and expansion cards. The width leaves room for the metalwork and mechanical clearance.

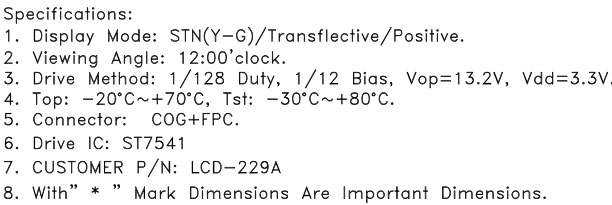

Specification

128x128 Chinese LCD Display Module

Resolution

128*64

Outline Size

35.6*40.3 mm

Viewing Area

32.6*30.3 mm

Active Area

26.86*26.86 mm

Connector

COG+FPC

Driver IC

ST7541

Backlight

3PCS White LEDS

Display Mode

STN(Y-G), Transflective, Positive

Viewing Angle

6:00

Drive Method

1/128 duty, 1/12 bias

Top

-20℃ TO + 70℃

Tst

-30℃ To + 80℃

RoHS Compliant

Yes

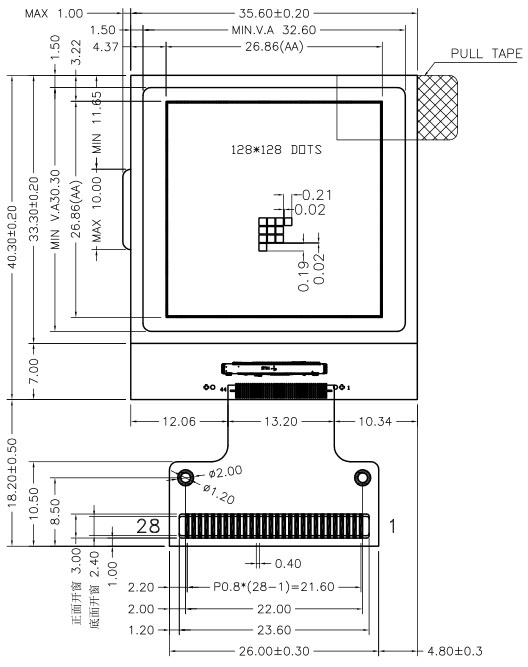

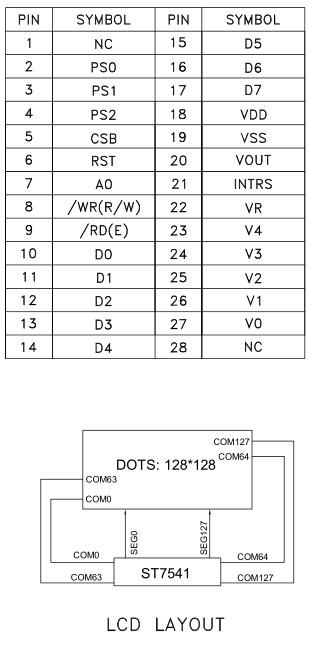

LCD Drawing
