Products > COG > > 128x64 COG LCD Mpdile
128x64 COG LCD Mpdile
128x64 COG LCD Mpdile 128x64 COG LCD Mpdile 128x64 COG LCD Mpdile 128x64 COG LCD Mpdile
Product name : 128x64 COG LCD Mpdile
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 Description



ENH-DG128064-05 is a monochrome graphic LCD 128x64 dot matrix display which is having the module dimension of 55x35.5 mm and AA size of 46.05x22.05 mm. This LCD display is built in with ST7565R IC; ENH-DG128064-05 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

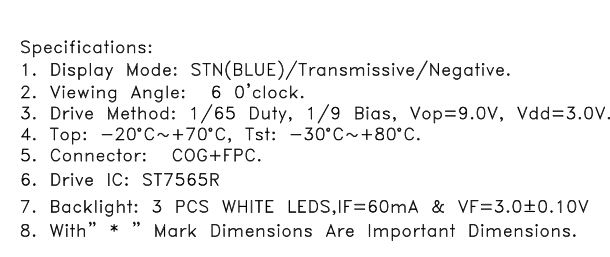

Details

128x64 LCD Display

Resolution

128*64

Outline Size

55*35.5 mm

Viewing Area

50.10*24.00 mm

Active Area

46.05*22.05 mm

Connector

COG+FPC

Driver IC

ST7565R

Backlight

3PCS white LEDS

Display Mode

STN(blue), Transmissive, Negative

Viewing Angle

6:00

Drive Method

1/65 duty, 1/9 bias

Top

-20℃ TO + 70℃

Tst

-30℃ To + 80℃

RoHS Compliant

Yes

Please contact us for data sheet and programming.

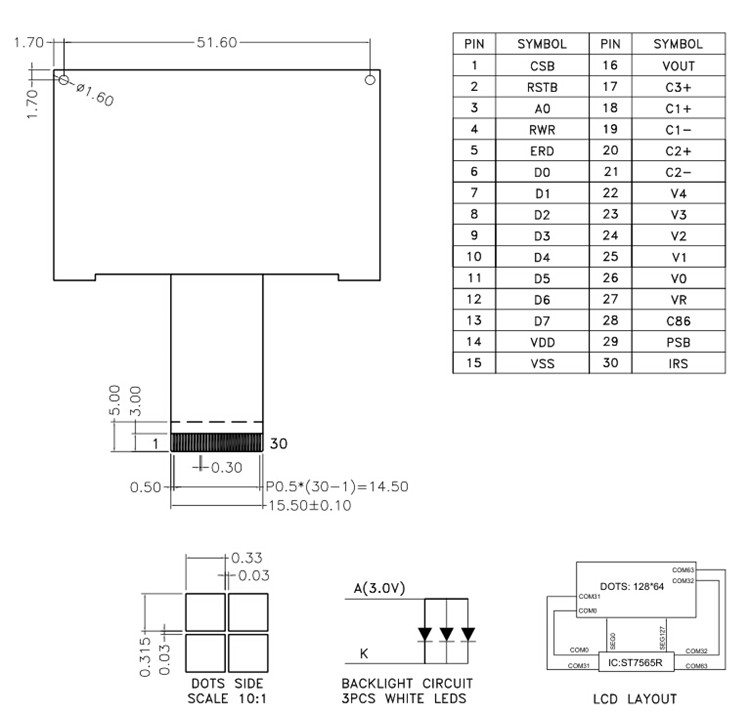

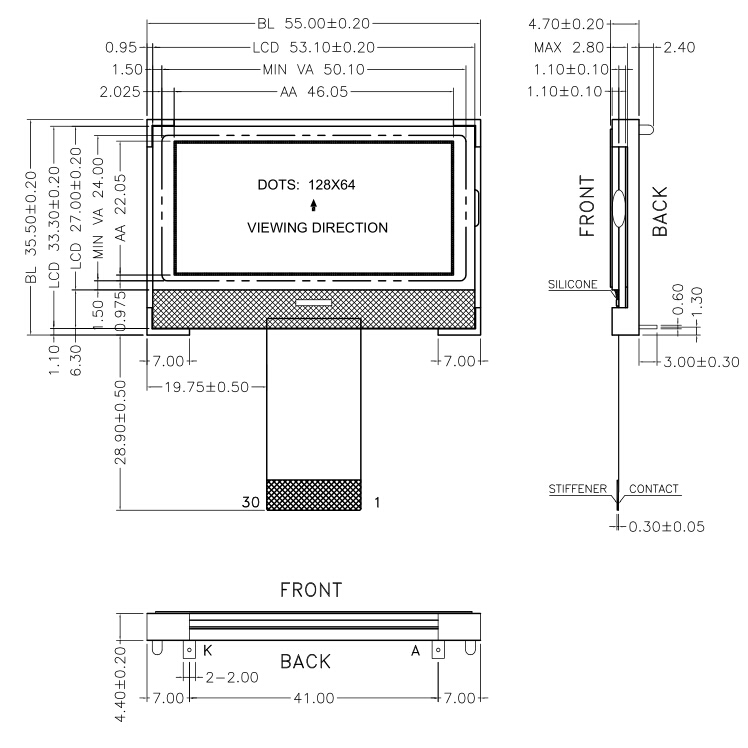

LCD Drawing

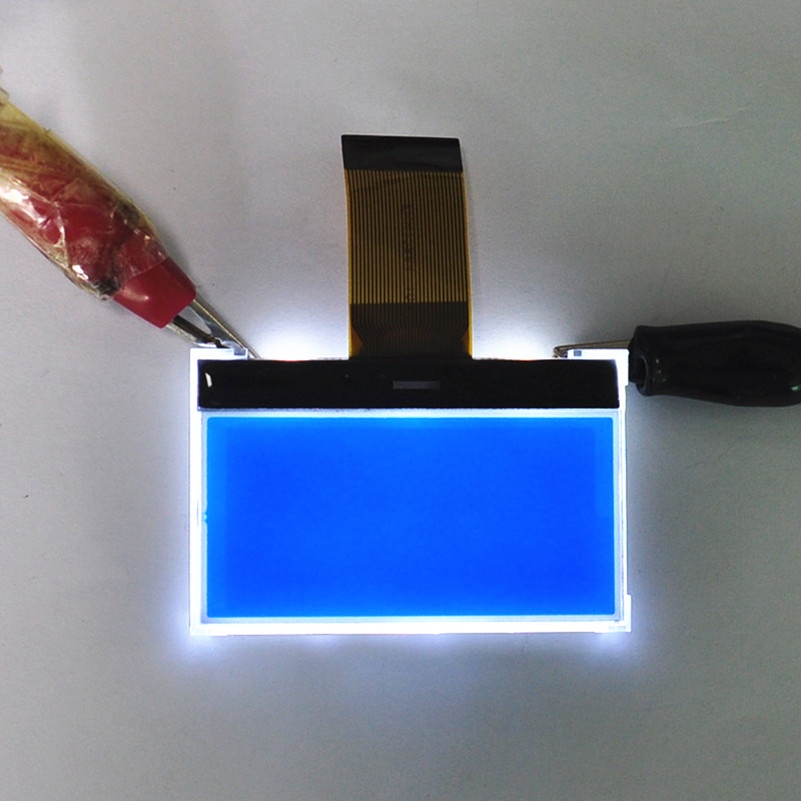

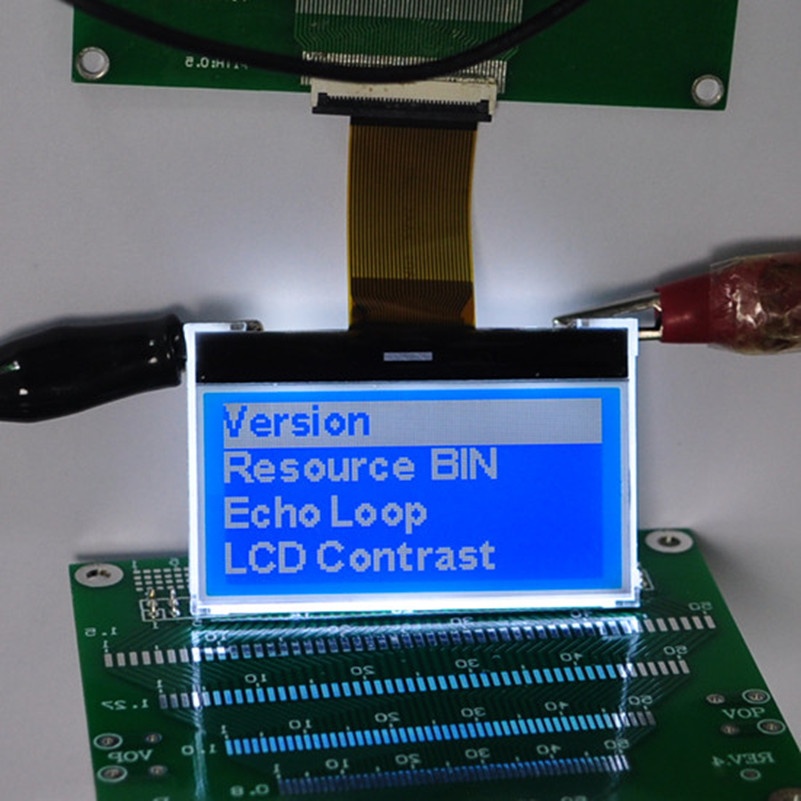

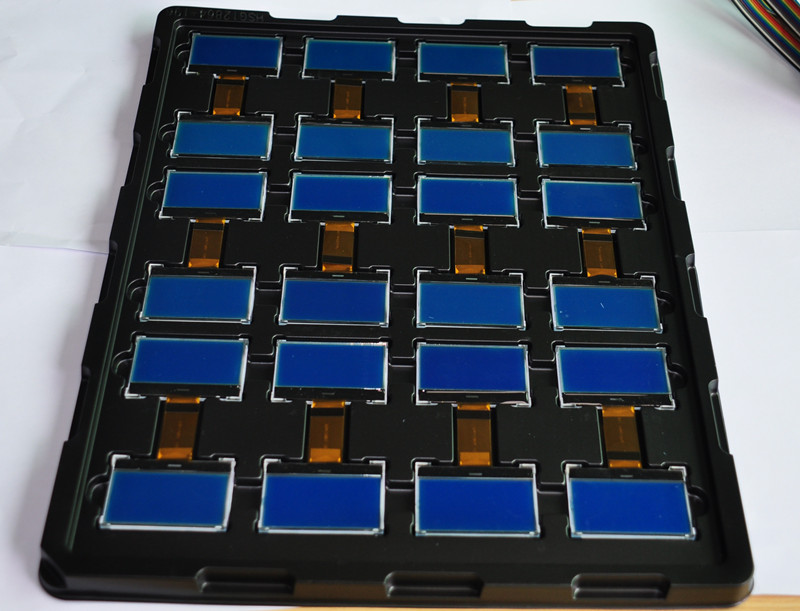

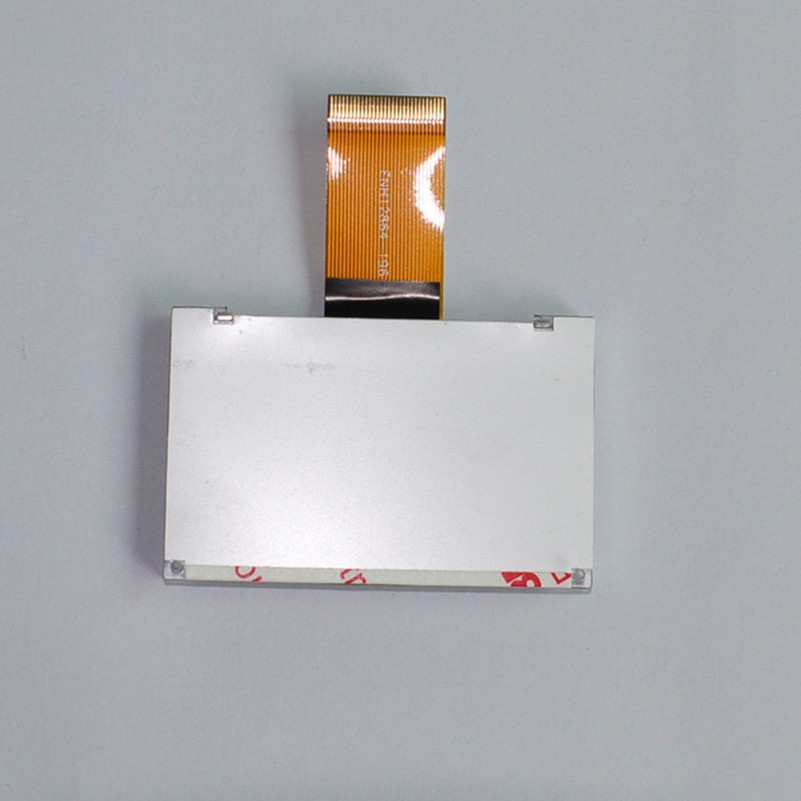

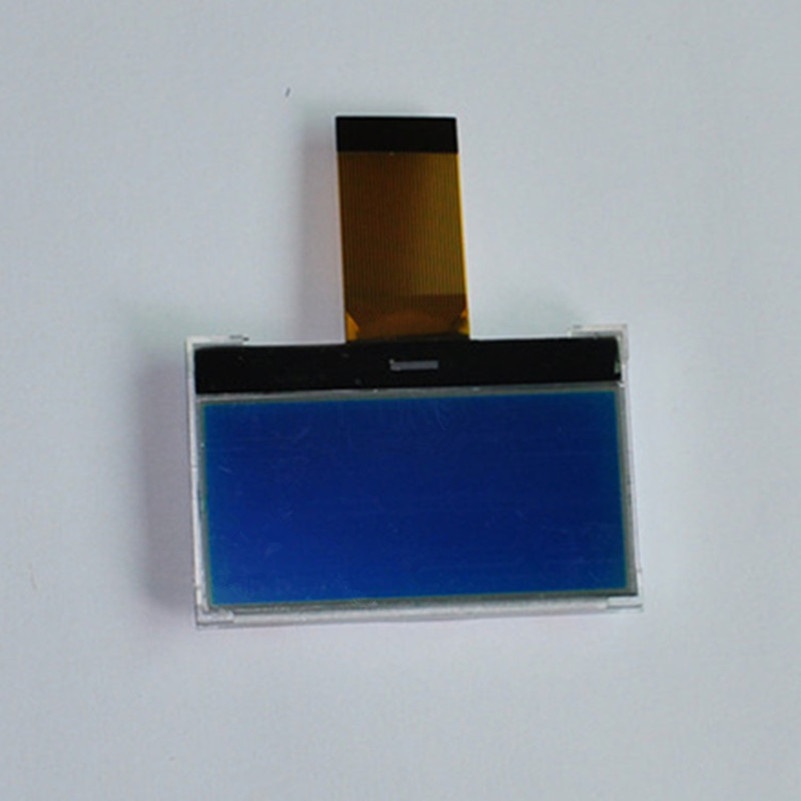

Image Details
