Products > COG > > 240x160 Chinese LCD Display Module

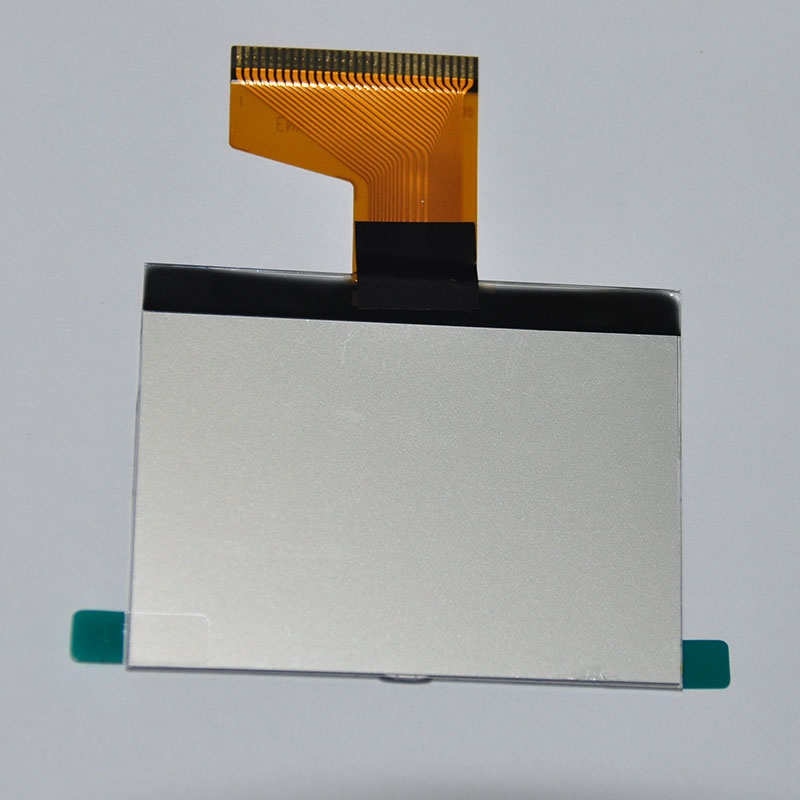

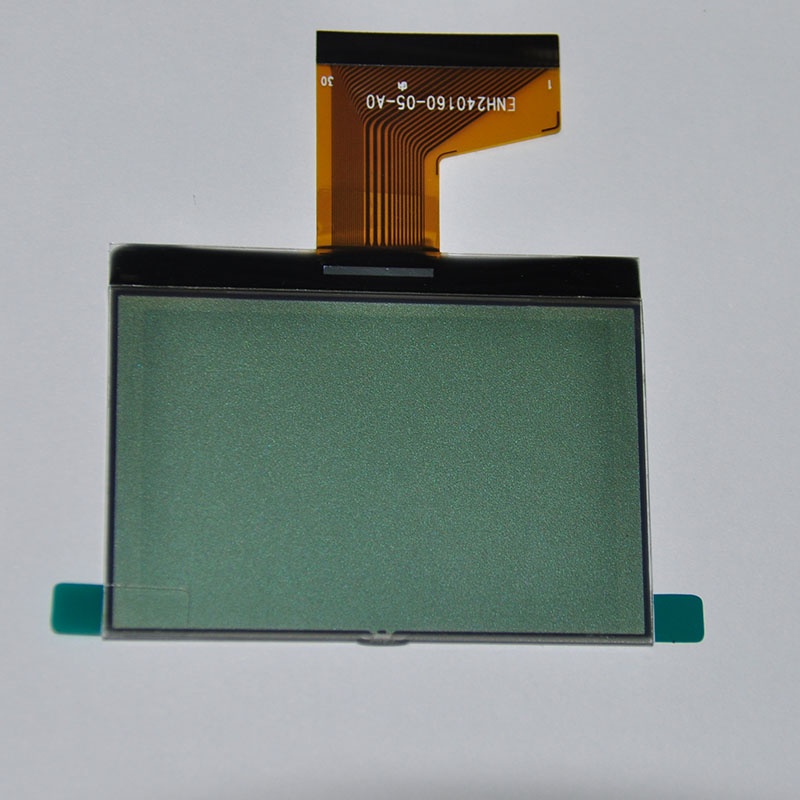

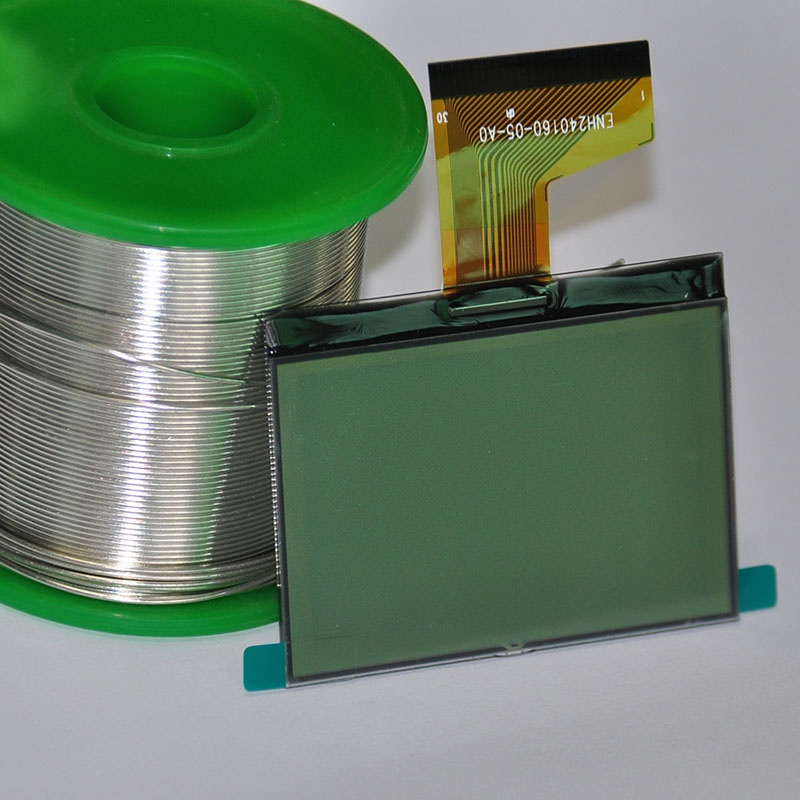

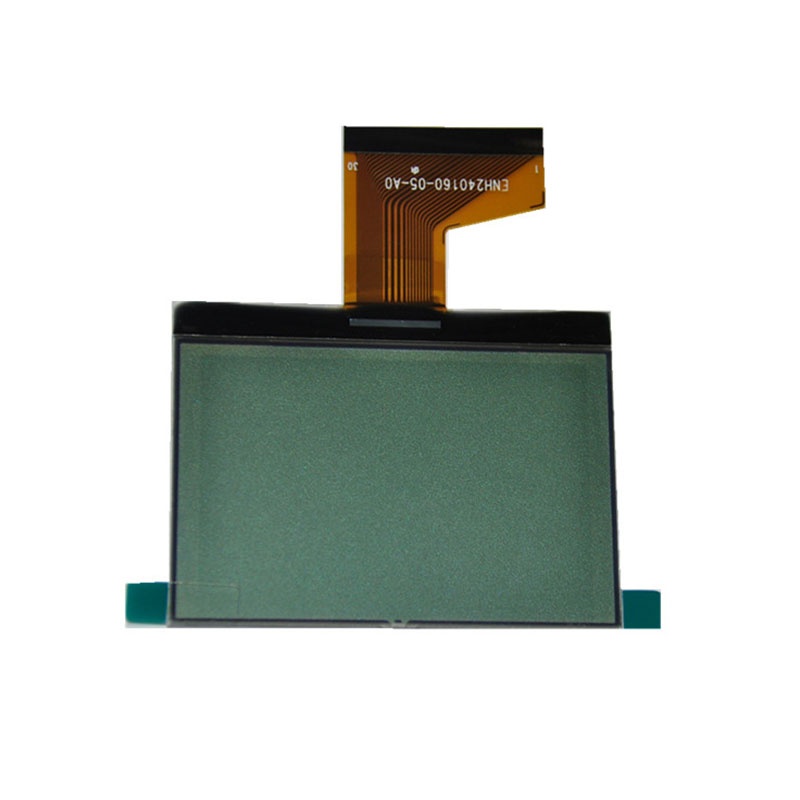

Product name : 240x160 Chinese LCD Display Module

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

Description

ENH-DG240160-01 is a Graphic LCD Display Module. The demands of high contrast ratio and wide view angle for displays are getting more and more popular.

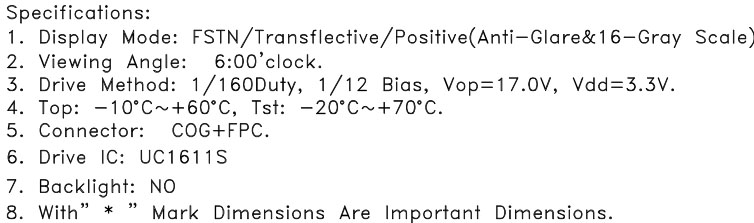

Specification

240x160 Chinese LCD Display Module
Resolution	240*160

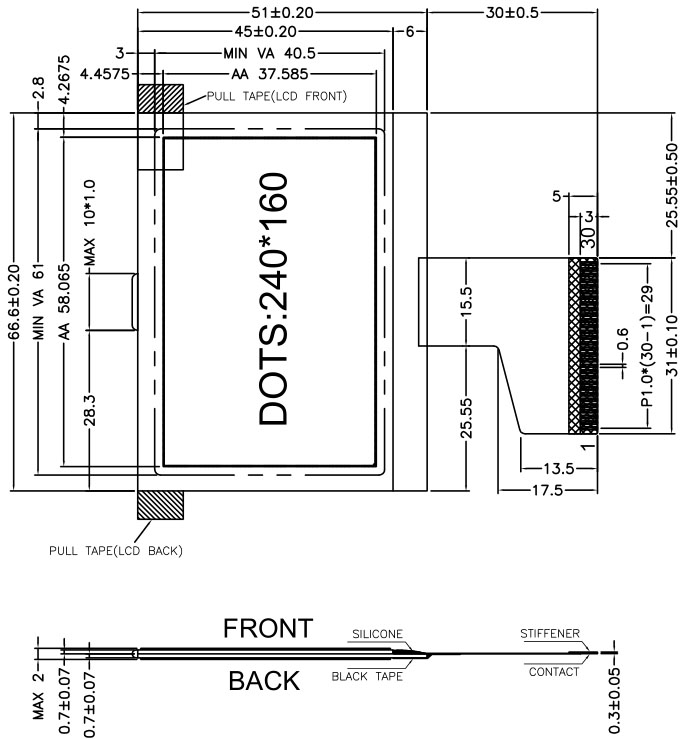

Outline Size	66.6*51 mm
Viewing Area	61*45 mm
Active Area	58.065*37.585 mm
Connector	COG+FPC
Driver IC	UC1611S
Backlight	No
Display Mode	STN(Y-G), Transflective, Positive(Anti-Glare&16-Gray, Scale)
Viewing Angle	6:00
Drive Method	1/160 duty, 1/12 bias
Top	-10℃ TO + 60℃
Tst	-20℃ TO + 70℃
RoHS Compliant	Yes
