Products > COG > > 128x64 Transflective Graphical LCD

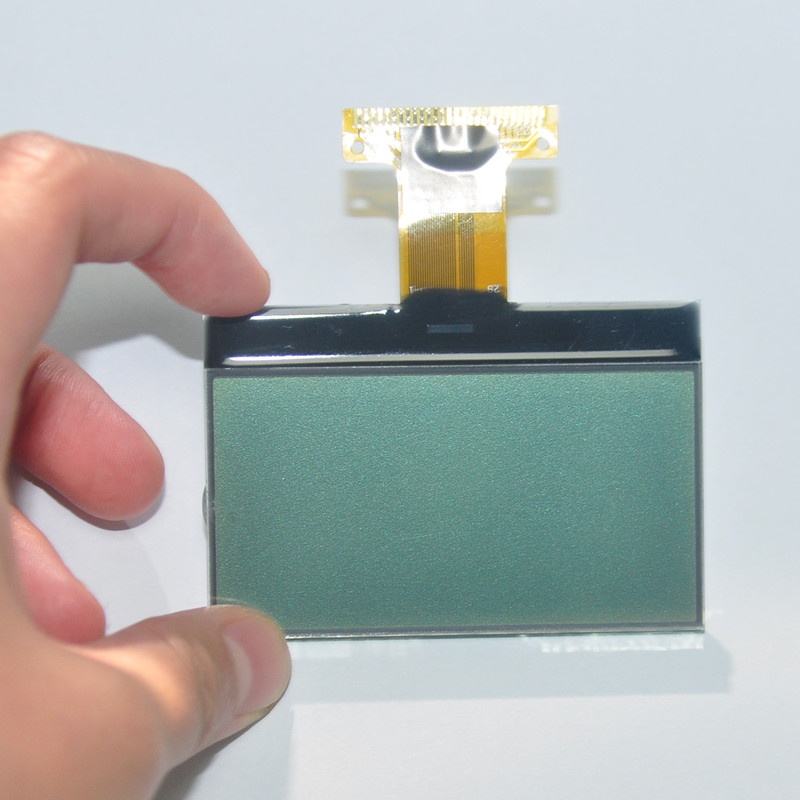

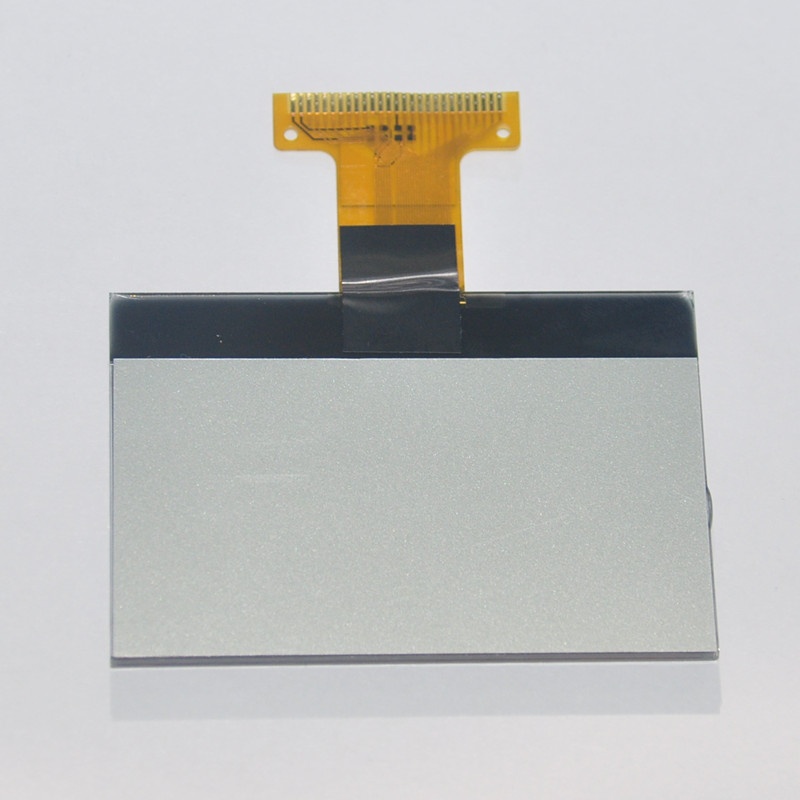

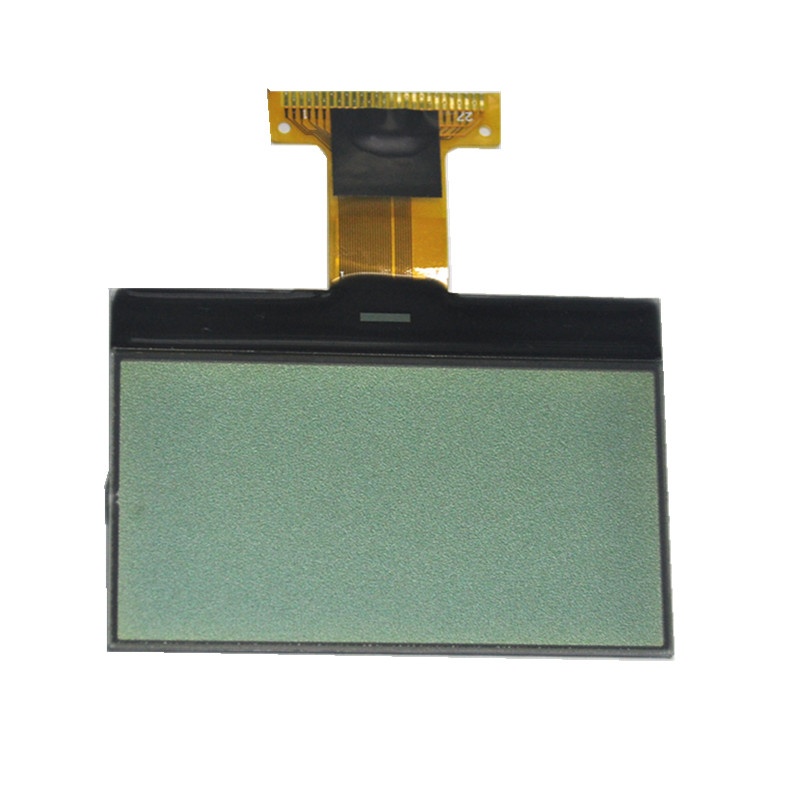

128x64 Transflective Graphical LCD
128x64 Transflective Graphical LCD 128x64 Transflective Graphical LCD 128x64 Transflective Graphical LCD
Product name : 128x64 Transflective Graphical LCD
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 Description



Sunlight readable 128x64 graphic LCD with positive voltage generator and temperature compensation.

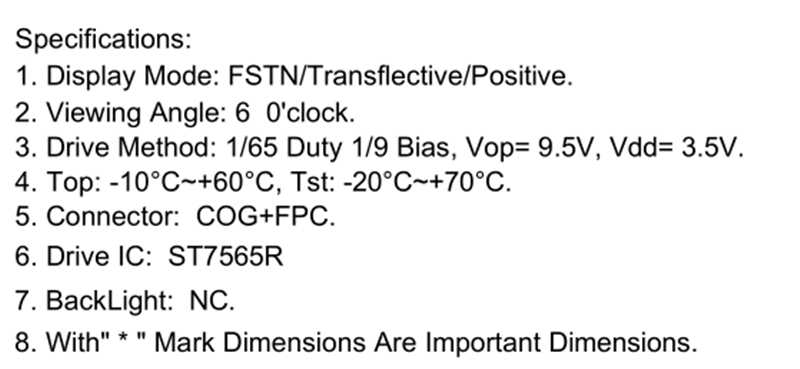

Specification

128x64 Transflective Graphical LCD

Resolution

128*64

Outline Size

65*43.4 mm

Viewing Area

61*31.4 mm

Active Area

54.99*27.47 mm

Connector

COG+FPC

Driver IC

ST7565R

Backlight

3PCS White LEDS

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/65 duty, 1/9 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

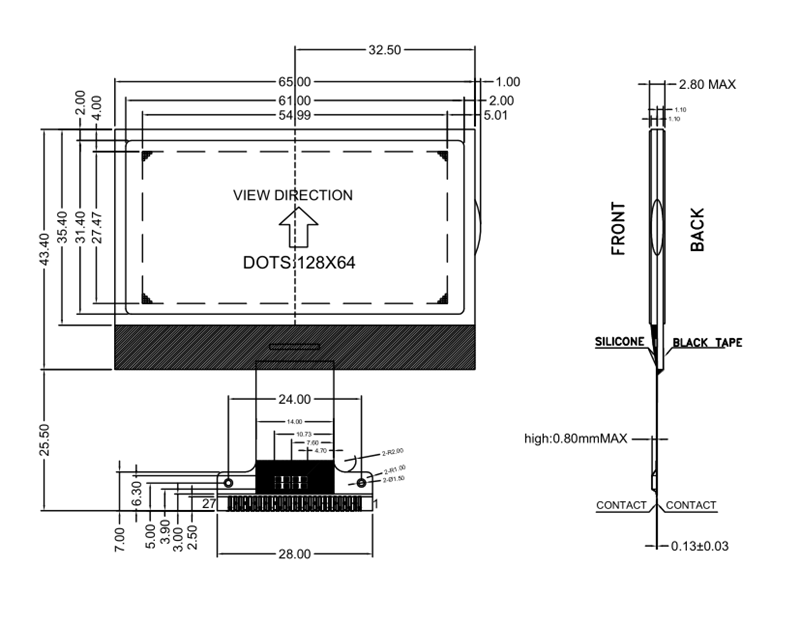

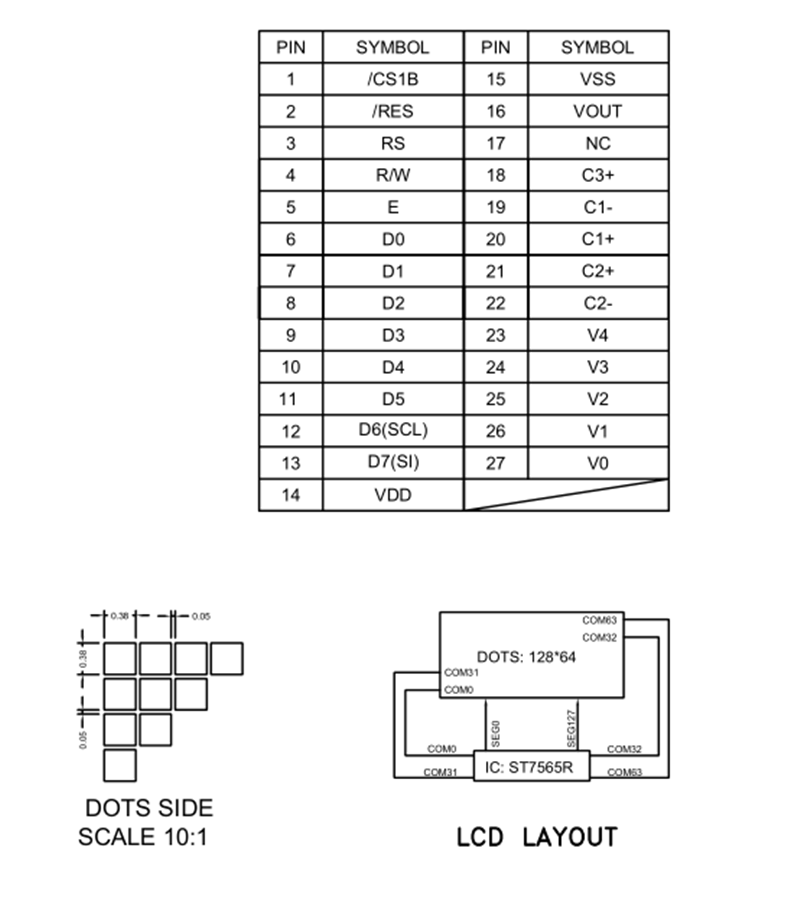

LCD Drawing
