Products > COG > > 128x64 Dot Matrix LCD Display

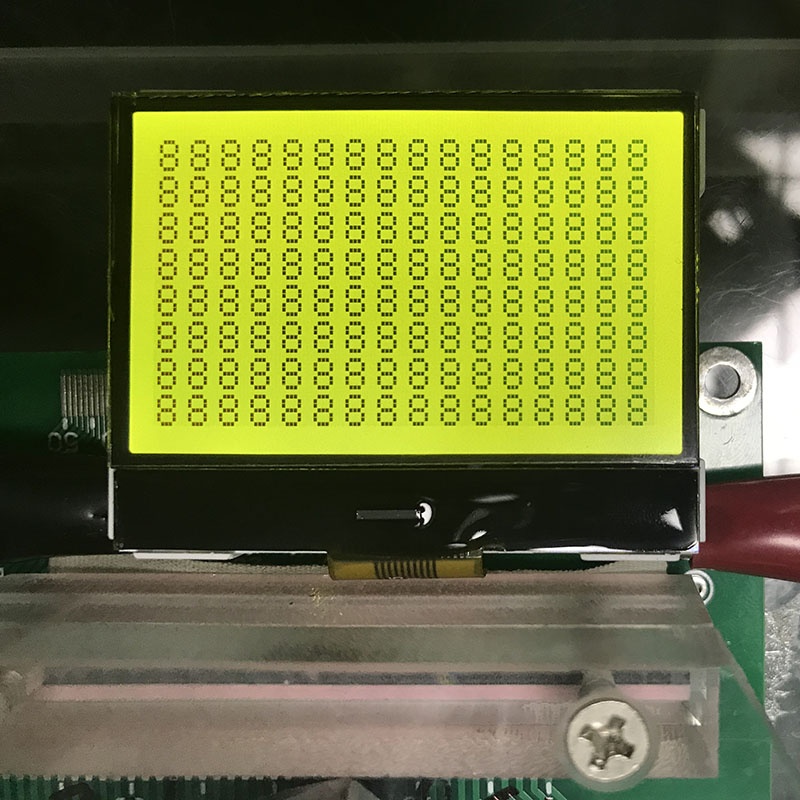

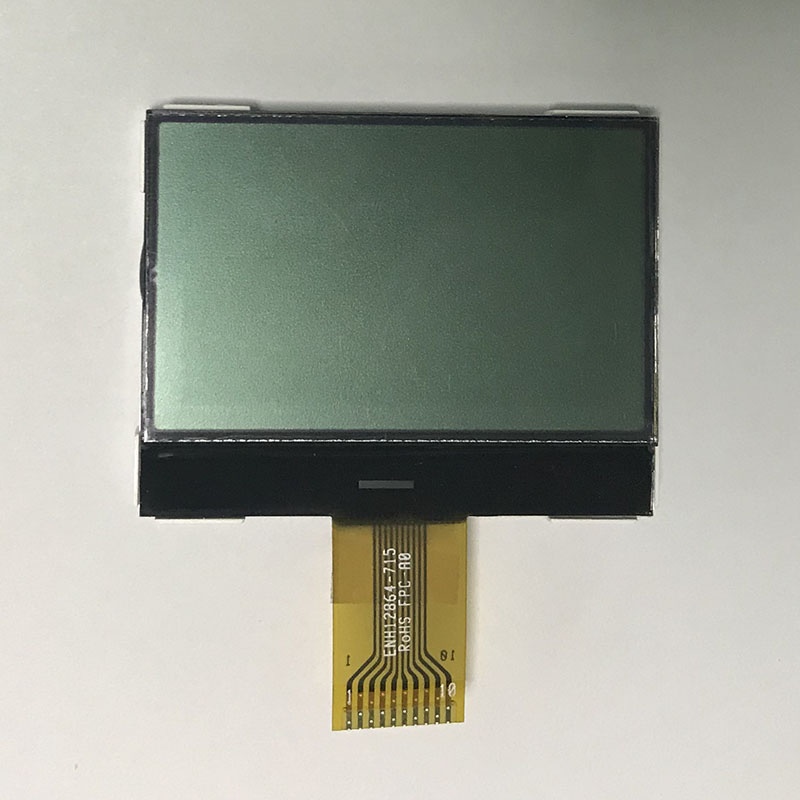

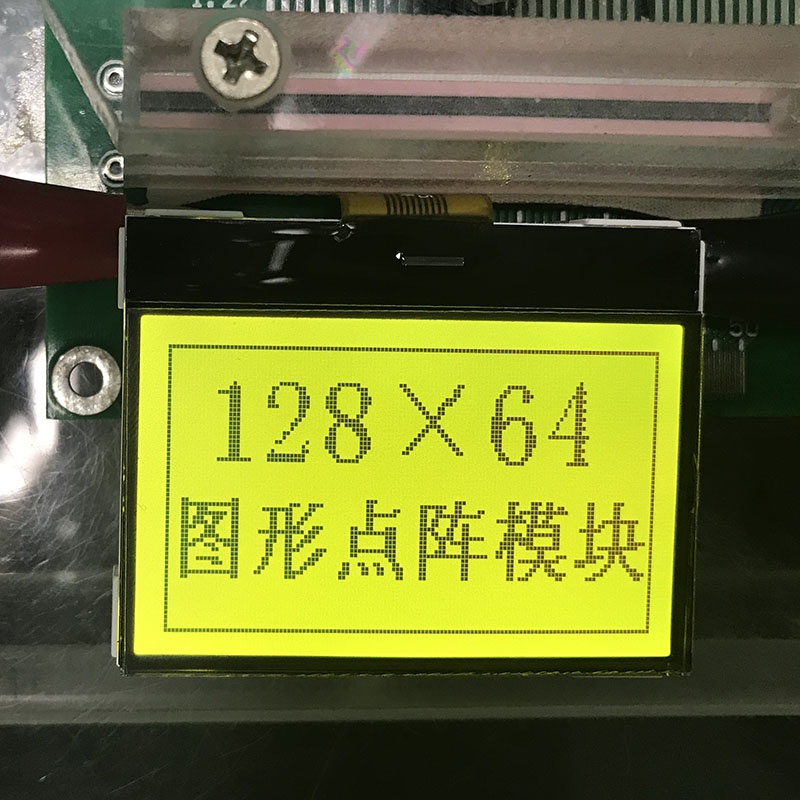

128x64 Dot Matrix LCD Display
128x64 Dot Matrix LCD Display 128x64 Dot Matrix LCD Display 128x64 Dot Matrix LCD Display 128x64 Dot Matrix LCD Display
Product name : 128x64 Dot Matrix LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



ENH-DG128064-113, its COG IC is the ST7567. This LCD module is most commonly paired with a wide variety LED backlight.



Specification

128x64 Dot Matrix LCD Display

Resolution

128*64

Outline Size

47.2*37.2 mm

Viewing Area

43*26.5 mm

Active Area

39.02*22.7 mm

Connector

COG+FPC

Driver IC

ST7541

Backlight

Y-G, 3 PCS

Display Mode

FSTN, Transflective, Positive

Viewing Angle

12:00

Drive Method

1/65 duty, 1/9 bias

Top

-20℃ TO + 70℃

Tst

-30℃ To + 80℃

RoHS Compliant

Yes



LCD Drawing
