Products > COG > > 128x64 0.56 Inch Graphic LCD Dark on Light Gray
128x64 0.56 Inch Graphic LCD Dark on Light Gray
128x64 0.56 Inch Graphic LCD Dark on Light Gray 128x64 0.56 Inch Graphic LCD Dark on Light Gray 128x64 0.56 Inch Graphic LCD Dark on Light Gray 128x64 0.56 Inch Graphic LCD Dark on Light Gray
Product name : 128x64 0.56 Inch Graphic LCD Dark on Light Gray
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 Description



This economical COG (Chip-On-Glass) FSTN transmissive display is suitable for use in direct sunlight and is easy to see in dimly lit areas. This graphic LCD display uses three long-life white LEDs for its backlight.

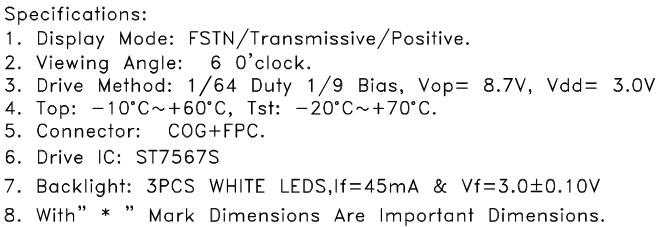

Specification

128x64 0.56 Inch Graphic LCD Dark on Light Gray

Resolution

128*64

Outline Size

30.18*21.4 mm

Viewing Area

26.58*14.86 mm

Active Area

25.58*14.06 mm

Connector

COG+FPC

Driver IC

ST7567S

Backlight

3PCS White LEDS

Display Mode

FSTN, Transmissive, Positive

Viewing Angle

6:00

Drive Method

1/64 duty, 1/9 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

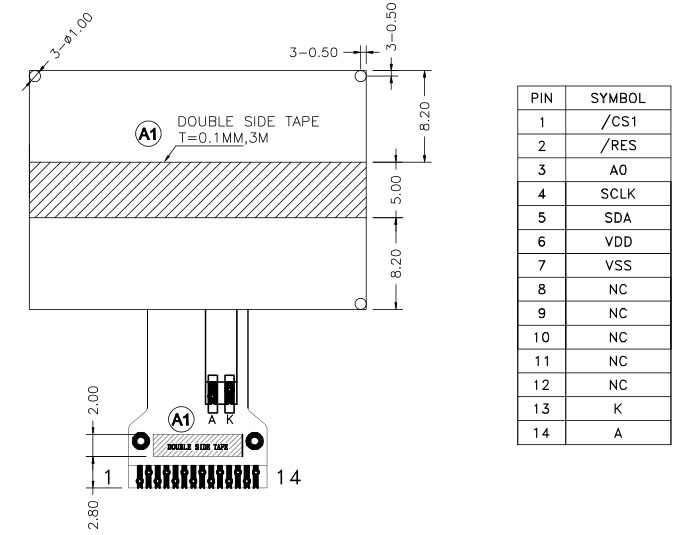

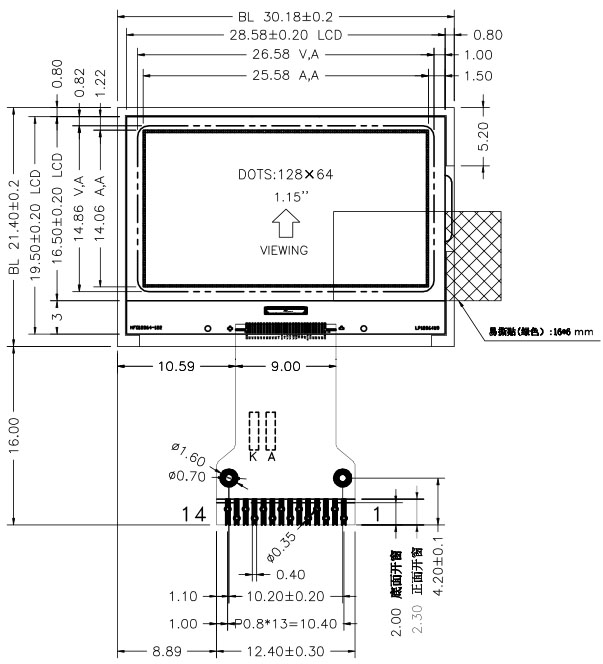

LCD Drawing
