Products > COG > > 128 x 32 Graphical LCD Displays
128 x 32 Graphical LCD Displays
128 x 32 Graphical LCD Displays 128 x 32 Graphical LCD Displays 128 x 32 Graphical LCD Displays 128 x 32 Graphical LCD Displays
Product name : 128 x 32 Graphical LCD Displays
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 Description



ENH-DG128032-02 is a 128x32 graphic LCD module which is having the outline size 52 x 27.5 mm and AA size of 42.22 x 10.54 mm. This 128x32 graphic LCD module is built in with UC1701xGAA controller IC.



Specification

128 x 32 Graphical LCD Displays

Resolution

128*32

Outline Size

52 x 27.5 mm

Viewing Area

46*16 mm

Active Area

42.22 x 10.54 mm

Connector

COG+FPC

Driver IC

UC1701xGAA

Backlight

WLED

Display Mode

FSTN, Transflective, Positive

Viewing Angle

12:00

Drive Method

1/33 duty, 1/6 bias

Top

-20℃ TO + 70℃

Tst

-30℃ To + 80℃

RoHS Compliant

Yes

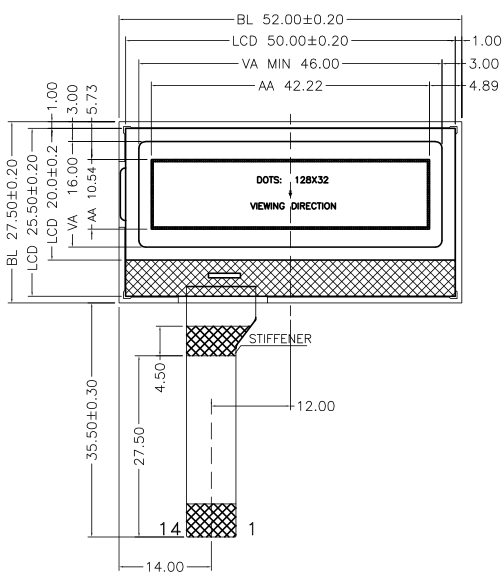

LCD Drawing

FAQ

1. What is the MOQ?

Generally if you choose the different products, our minimum order quantity also will be different.



2. What about the delivery time?

The LCD products needs about 3-6 weeks to be made after receive deposit.



3. Does your product have any warranty?

Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modification and repairs are not covered by our warranty.



4. What’s your payment method?

We usually accept the payment methods include T/T, Trade Assurance, bank transfer. 30-100% deposit in advance and balance before shipping upon the payment amount. Buyer can choose which payment ways that you accept.
