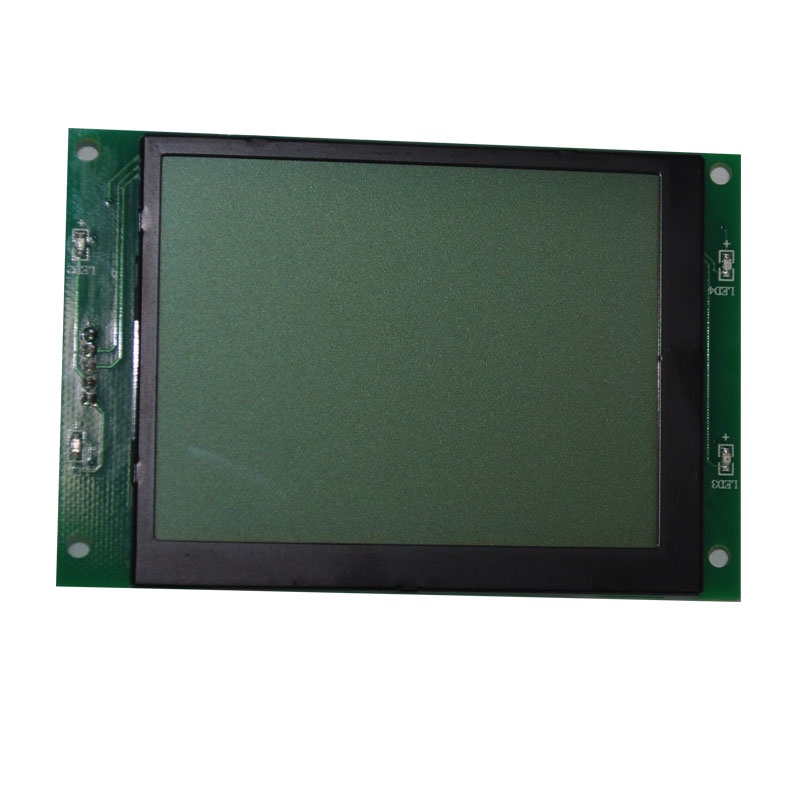

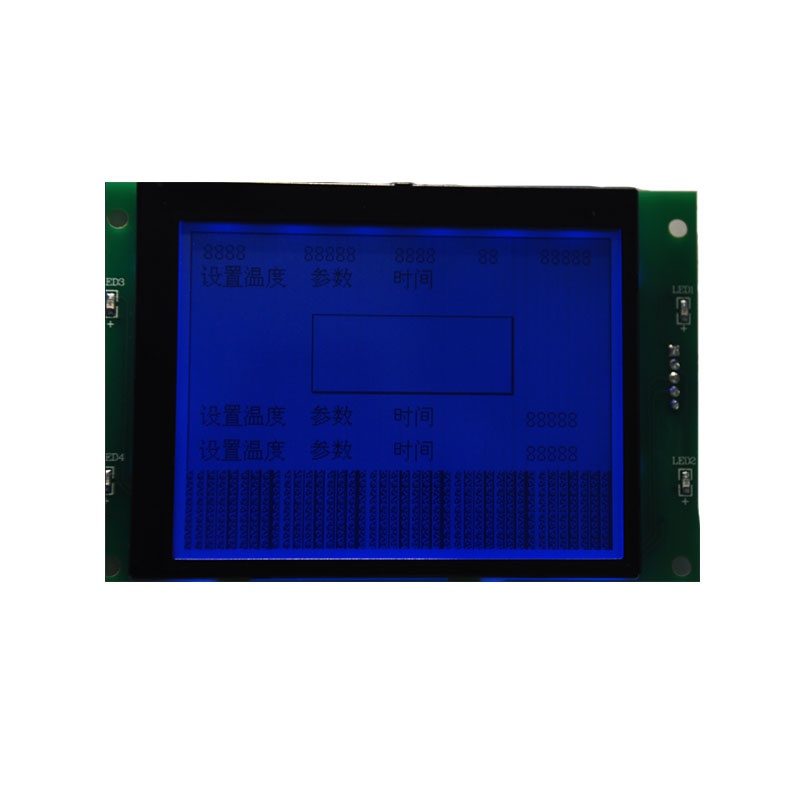

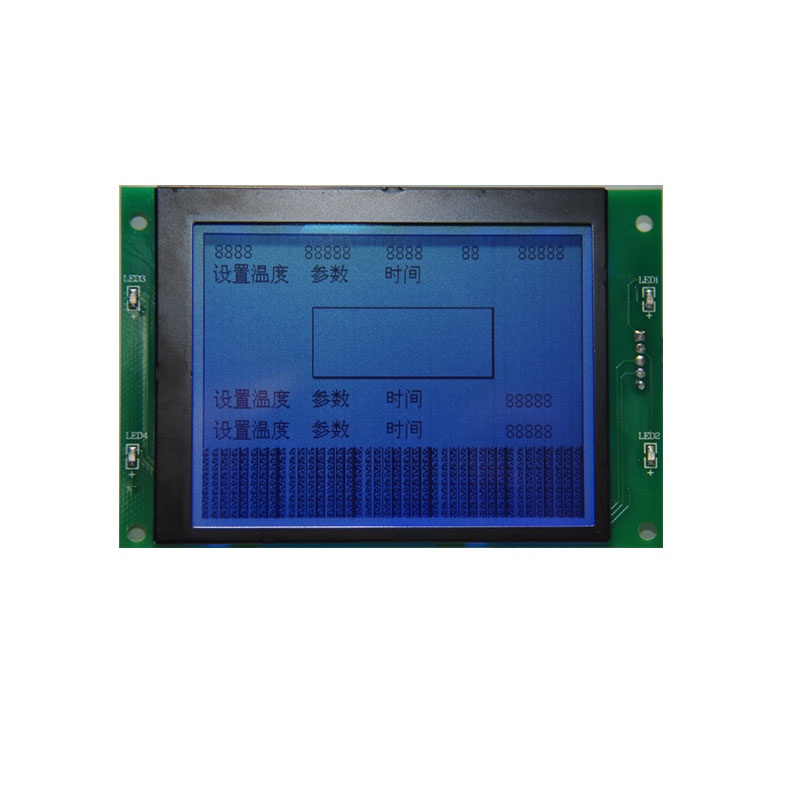

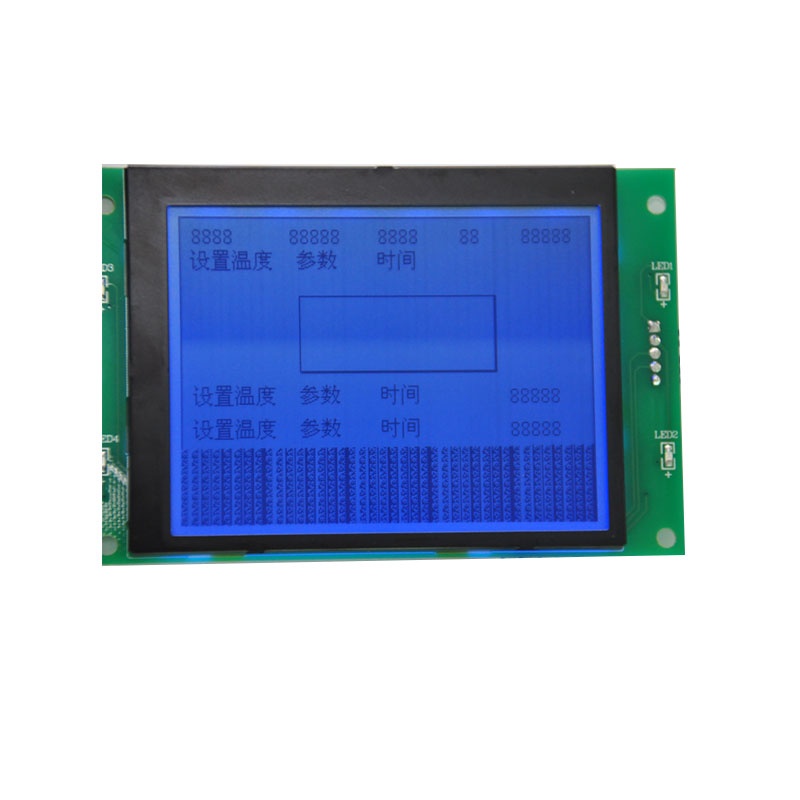

320x240 Chinese LCD Display Module
320x240 Chinese LCD Display Module 320x240 Chinese LCD Display Module 320x240 Chinese LCD Display Module 320x240 Chinese LCD Display Module
Product name : 320x240 Chinese LCD Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



Enhance your product with the addition of our COB LCD module. This display module has 320 x 240 resolution and uses the single-chip RA8835AP3N driver.

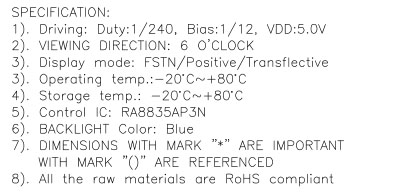

Specification

320x240 Chinese LCD Display Module

Resolution

320*240

Outline Size

110*73.3 mm

Viewing Area

80.5*61.1 mm

Active Area

76.78*57.58 mm

PIN Description

20 PIN

Driver IC

RA8835AP3N

Backlight

Blue

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/240 duty, 1/12 bias

Top

-20℃ TO + 80℃

Tst

-20℃ To + 80℃

RoHS Compliant

Yes

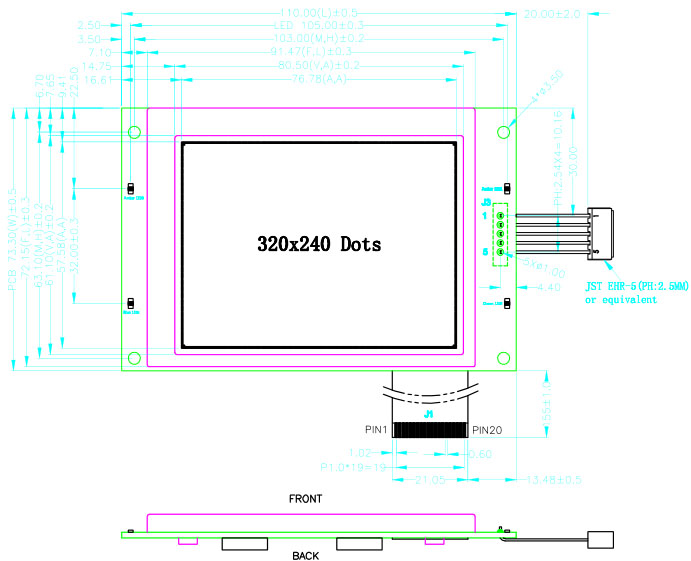

LCD Drawing
