Products > Segment LCD > > 7 Segment LCD Displays

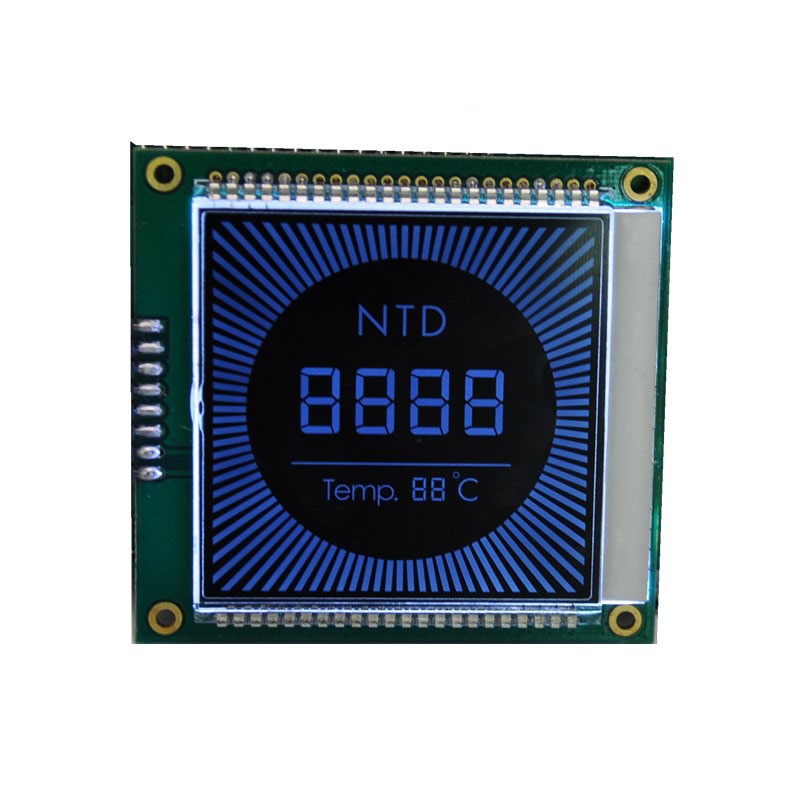

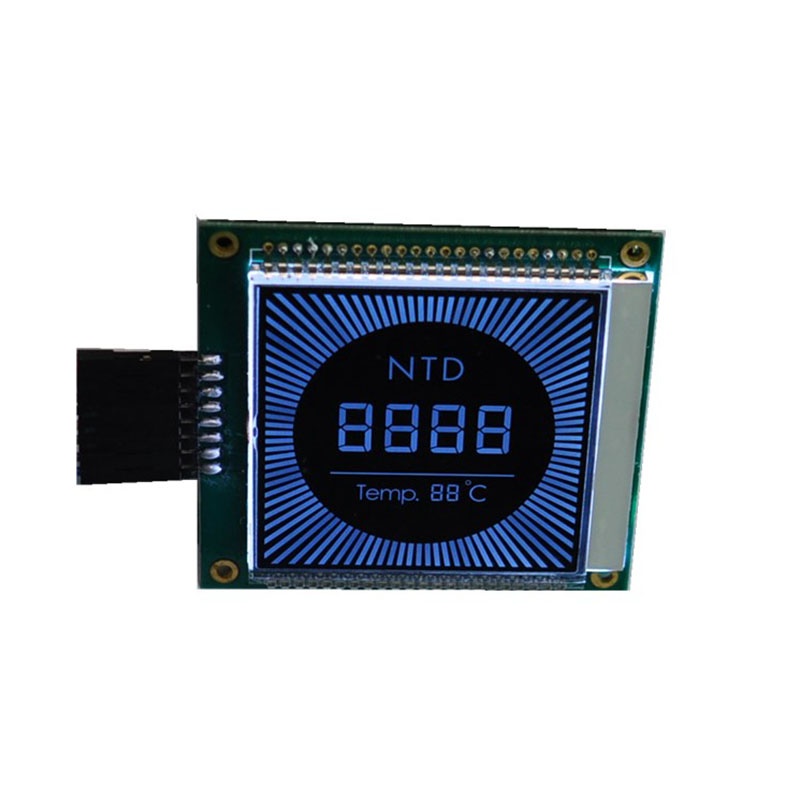

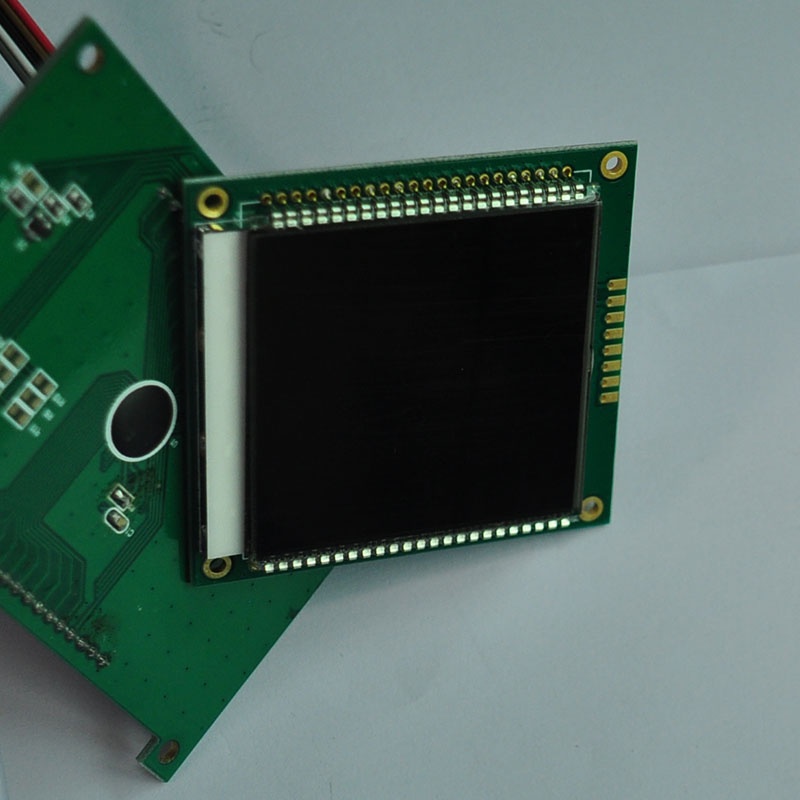

7 Segment LCD Displays
7 Segment LCD Displays 7 Segment LCD Displays 7 Segment LCD Displays 7 Segment LCD Displays
Product name : 7 Segment LCD Displays
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Description



A segmented LCD is an ideal solution for products that require a cost-effective, low-power display option. This type of LCD panel is easily customizable to meet your display requirements. Segmented LCDs are a popular choice among products such as thermostats, kitchen appliances, medical devices, industrial meters, and more.

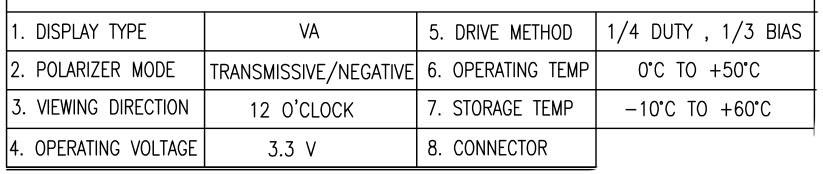

Specification

7 Segment LCD Displays

Display Type

VA

Polarizer Mode

Transmissive, Negative

LCD Size

49*53 mm

Viewing Area

46*46 mm

Connector

PIN



STN(Y-G), Transflective, Positive

Viewing Angle

12:00

Drive Method

1/4 duty, 1/3 bias

Top

0℃ TO + 50℃

Tst

-10℃ To +60℃

RoHS Compliant

Yes

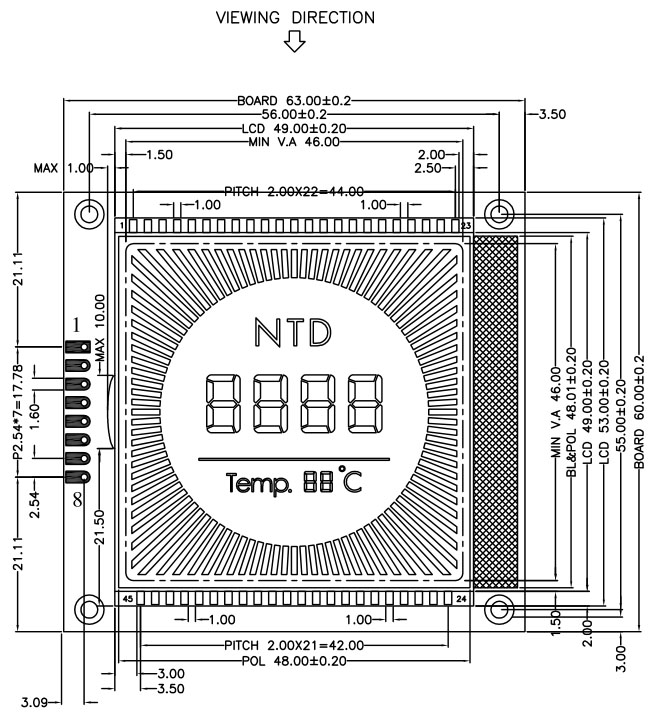

LCD Drawing
