Products > Graphic LCD > > 128x64 COG LCD Graphic Display
128x64 COG LCD Graphic Display
128x64 COG LCD Graphic Display 128x64 COG LCD Graphic Display 128x64 COG LCD Graphic Display 128x64 COG LCD Graphic Display
Product name : 128x64 COG LCD Graphic Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

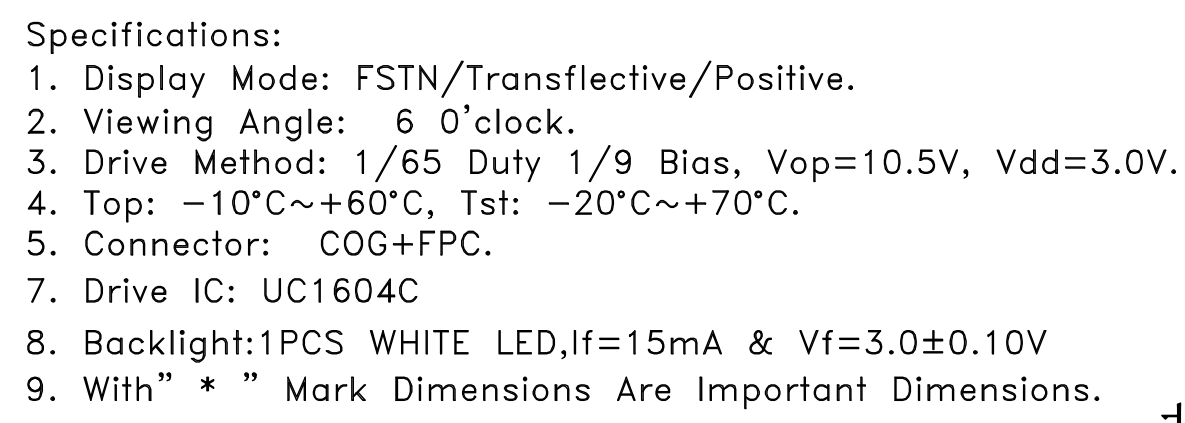

Description

128*64 FSTN graphic LCD module, RoHS compliant, UC1604C controlller. Our ENH-DG128064-01-NFPHGF has a outline size 30.5*16 mm and is the samllest of our standard 128*64 LCD modules. This LCD is suitable for a wide variety of applications and is available with several different backlight colors.

128*64 Resolution LCD Display

Resolution

128*64

Outline Size

30.5*16 mm

Viewing Area

23.5*14 mm

Active Area

21.74*10.22 mm

Connector

COG+FPC

Driver IC

UC1604C(COG)

Backlight

1PCS WHITE LEDS

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/65 duty, 1/9 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

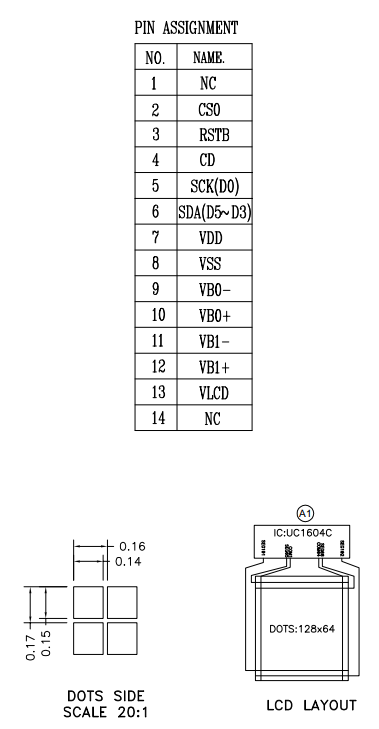

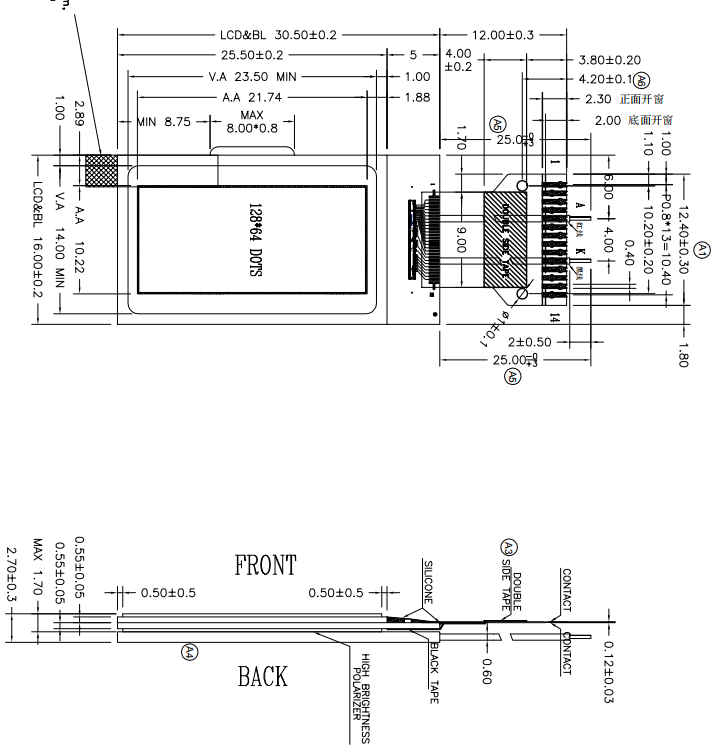

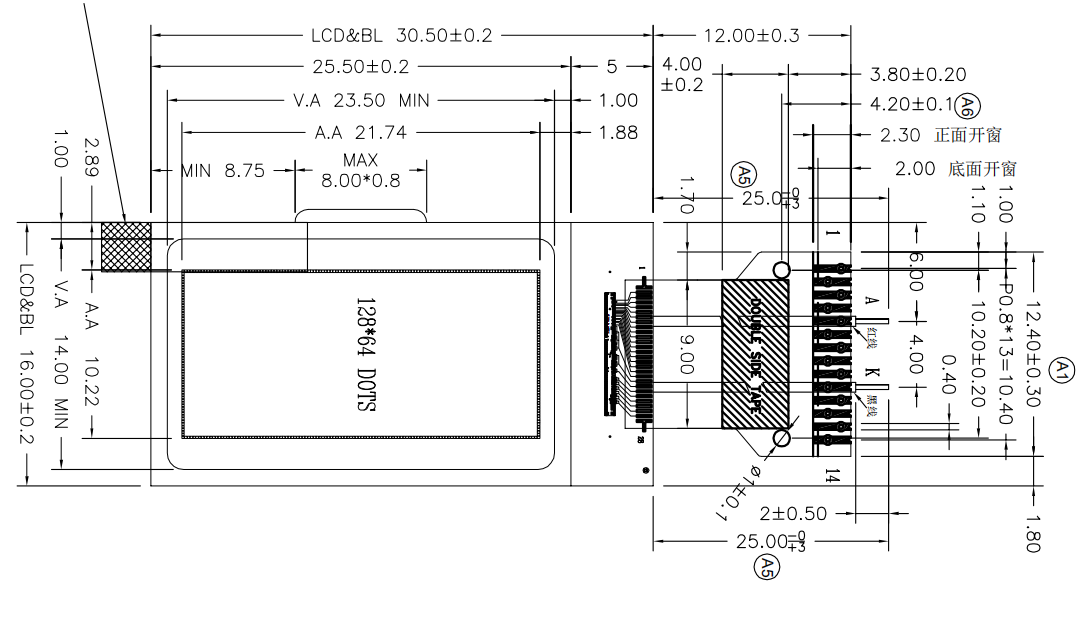

LCD Drawing

Image Details

FAQ

1.How can I get the samples?

Please send your inquiry details for us, then we will quote on the product for your reference, and then confirm the payment and drawing details by your side, when samples finished will be delivery via air.

2.How long can I get the samples?

Samples time will be take 5-7 working days.

3.Will you offer free samples?

Yes, we will provide 5-10 free samples, you just need to pay the tooling cost.

4.How to place an order?

After samples confirmed, please send us your purchase order by email, then we will send you an invoice for payment.



Application

1)ETC electronic tag

2)Meters & Instrument

3)Telecommunication

4)Domestic Electrical Appliance

5)U Shield

6)Office equipment

6)Medical & health equipment

7)3D & Shutter

8)Auto electronics

9)Fuel dispensers
