Products > Graphic LCD > > 128*64 Parallel LCD Display Module
128*64 Parallel LCD Display Module

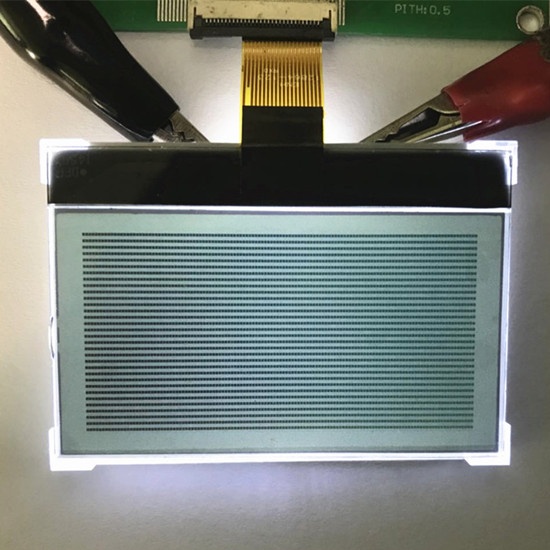

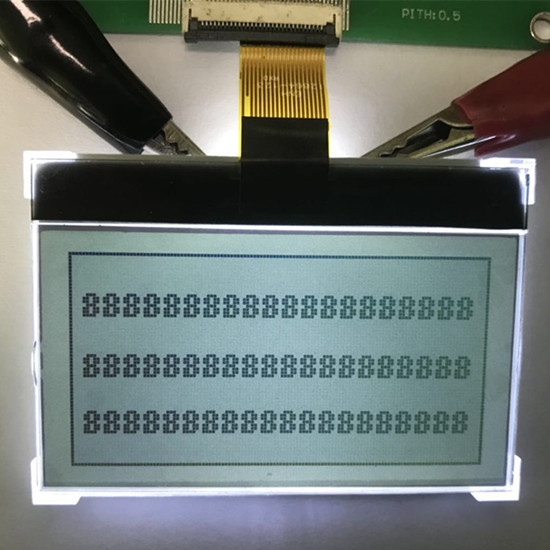

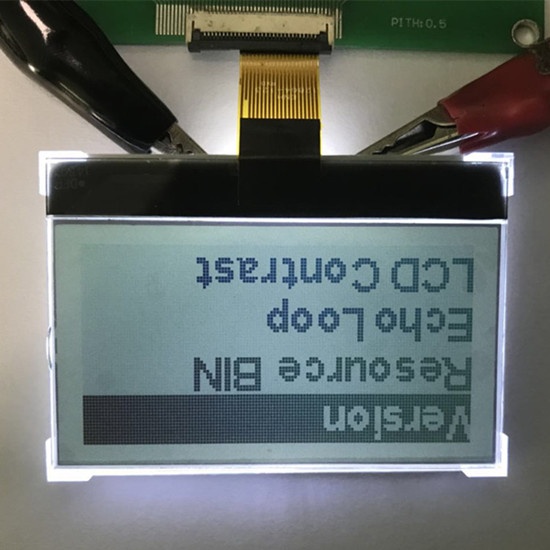

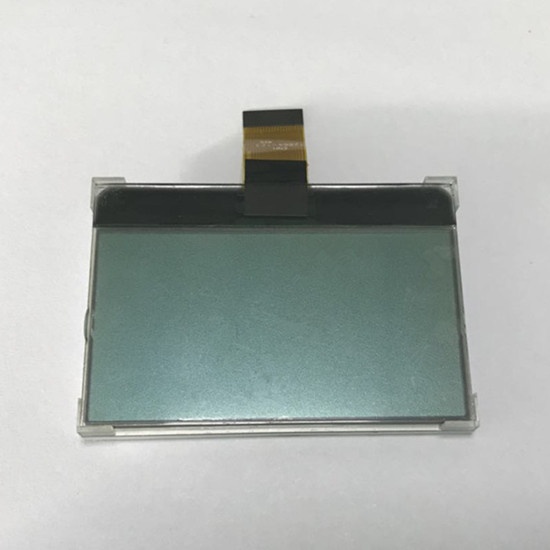

128*64 Parallel LCD Display Module 128*64 Parallel LCD Display Module 128*64 Parallel LCD Display Module 128*64 Parallel LCD Display Module
Product name : 128*64 Parallel LCD Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



This is an extremely low-power lcd graphic display 128x64. The integrated blue LED backlight easily illuminates this graphical lcd display in low-light conditions. This graphic lcd display module is perfectly suited for hand-held or any application requiring low power consumption or a very thin lcd display. It has an integrated ST7567 controller. The FFC is designed for inexpensive mass-production, with no need for a mating connector as the module solders directly to your PCB.



Key Features

128*64 Parallel LCD Display Module

Resolution

128x64

Outline Size

57.6*40.5 mm

Viewing Area

53.6*28.6 mm

Active Area

48.60*24.93 mm

Connector

COG+FPC

Driver IC

ST7567

Backlight

BLED

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/64 duty, 1/7 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes



LCD Drawing

Image Details



FAQ

1.How can I get the samples?

Please send your inquiry details for us, then we will quote on the product for your reference, and then confirm the payment and drawing details by your side, when samples finished will be delivery via air.

2.How long can I get the samples?

Samples time will be take 5-7 working days.

3.Will you offer free samples?

Yes, we will provide 5-10 free samples, you just need to pay the tooling cost.

4.How to place an order?

After samples confirmed, please send us your purchase order by email, then we will send you an invoice for payment.

5. How long of mass production?

25-35 working days. It depends on the different quantity and module number.



Application

1)ETC electronic tag

2)Meters & Instrument

3)Telecommunication

4)Domestic Electrical Appliance

5)U Shield

6)Office equipment

6)Medical & health equipment

7)3D & Shutter

8)Auto electronics

9)Fuel dispensers
