Products > OLED > > 1.54” 128*64 OLED Display

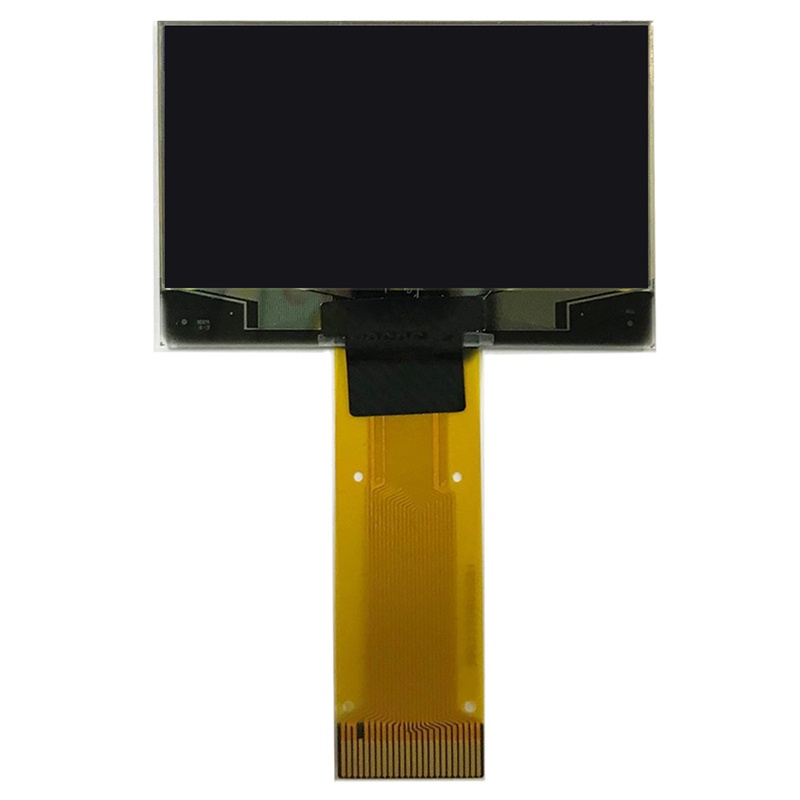

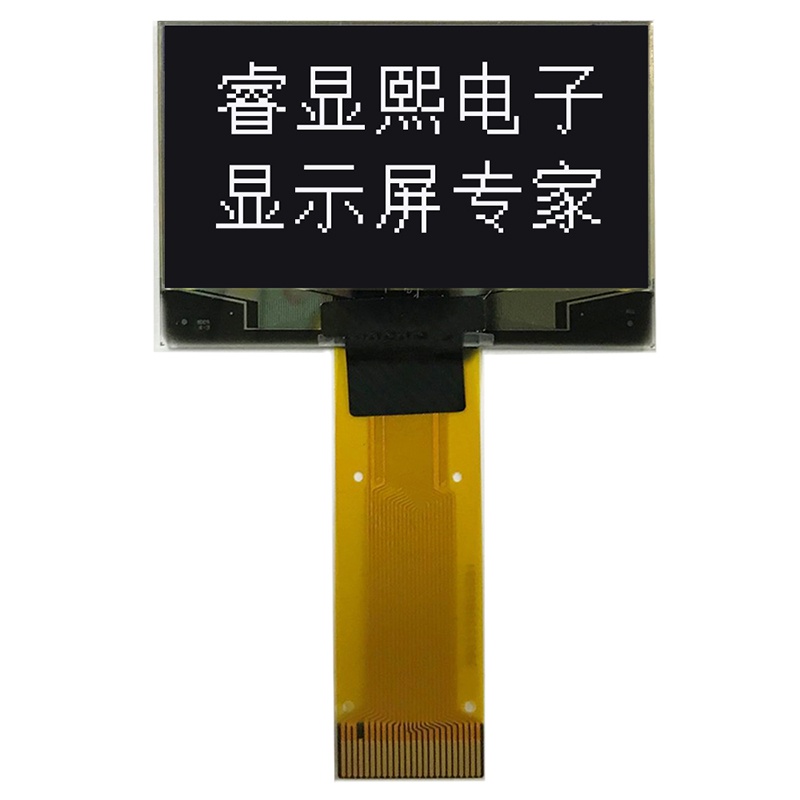

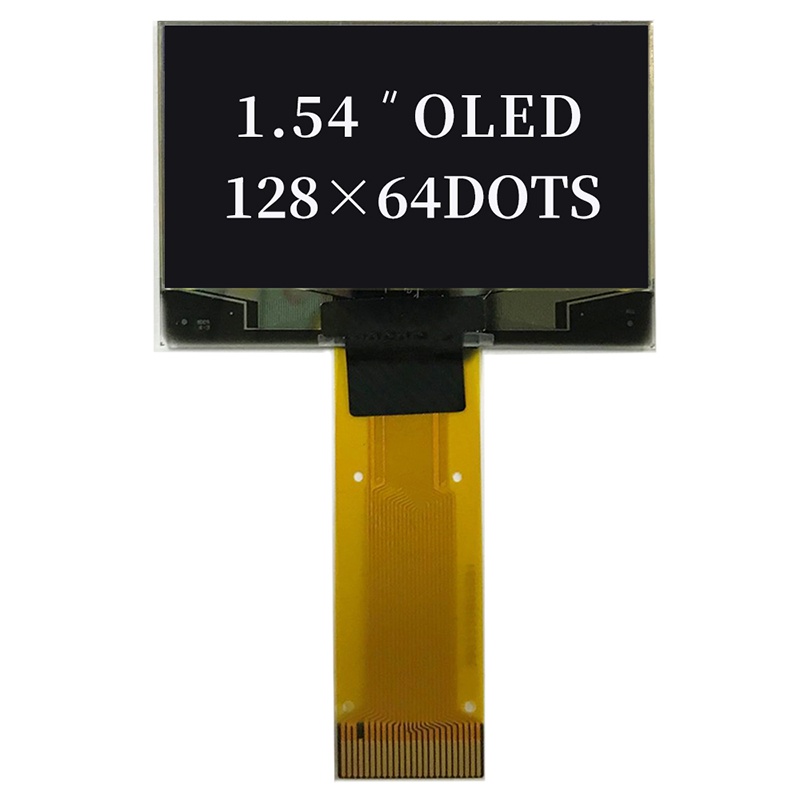

1.54” 128*64 OLED Display
1.54” 128*64 OLED Display 1.54” 128*64 OLED Display 1.54” 128*64 OLED Display
Product name : 1.54” 128*64 OLED Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Description



Super popular small OLED! This white-on-black OLED is perfect for display panels that have little space and need a high resolution 128x64 graphic display. With a 42.04(W)x27.22(H)x1.41(D) mm, this is one of the smallest OLEDs available.



Driver SPD0301ZD or compatible controller communicates with 6800/8080 interface, 4 wire serial interface, I2C.

The FPC mates with a 24-pin FPC connector, which can be processed through your normal SMT reflow.



OLED Details

1.54” 128*64 OLED Display

Size

1.54”

SSD1331

SPD0301ZD

Resolution

128)×64

Panel Size

42.04(W)x27.22(H)x1.41(D) (mm)

View Area

37.052 (W) x 19.516(H) (mm)

Active Area

35.052(W) x17.516(H) (mm)

Interface

6800/8080 interface, 4 wire serial interface, I2C

PIN Number

24 PIN

Display Color

White

Module Weight

TBD

MOQ

1 Piece

Test Platform

1>51

2>STM32

3>STM8

4>Arduino

Please contact me for questions regarding this product.

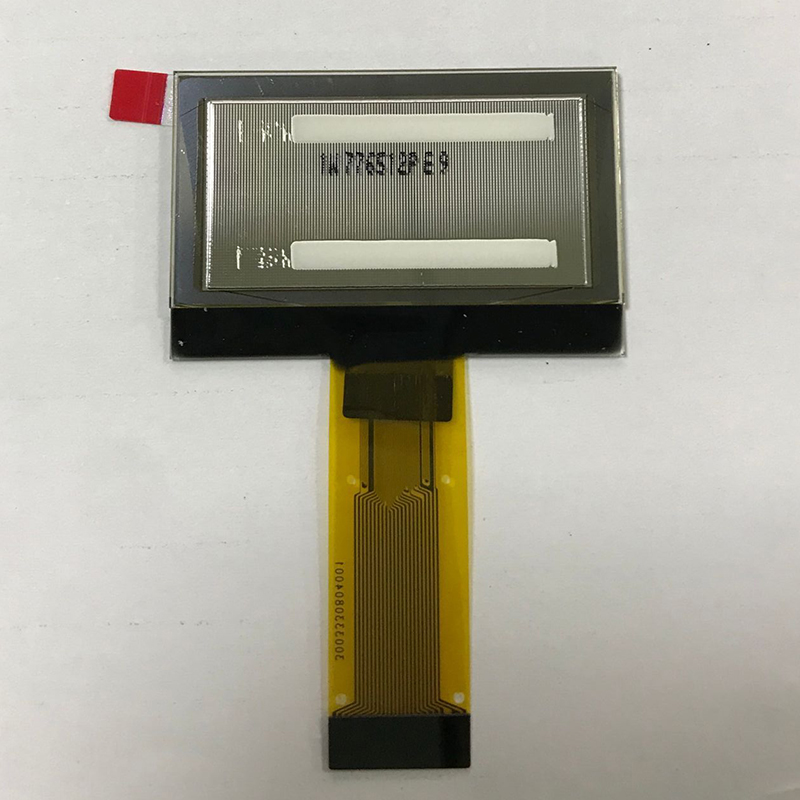

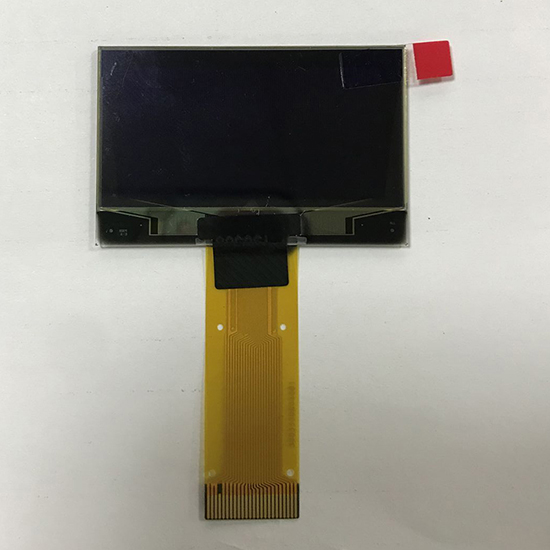

Image Details

OLED Applications

-Meter

-Ammeter

-Instrument tuner

-External hard disk

- Printers

-Wearable devices

-Medical & health equipment

-3D & Shutter

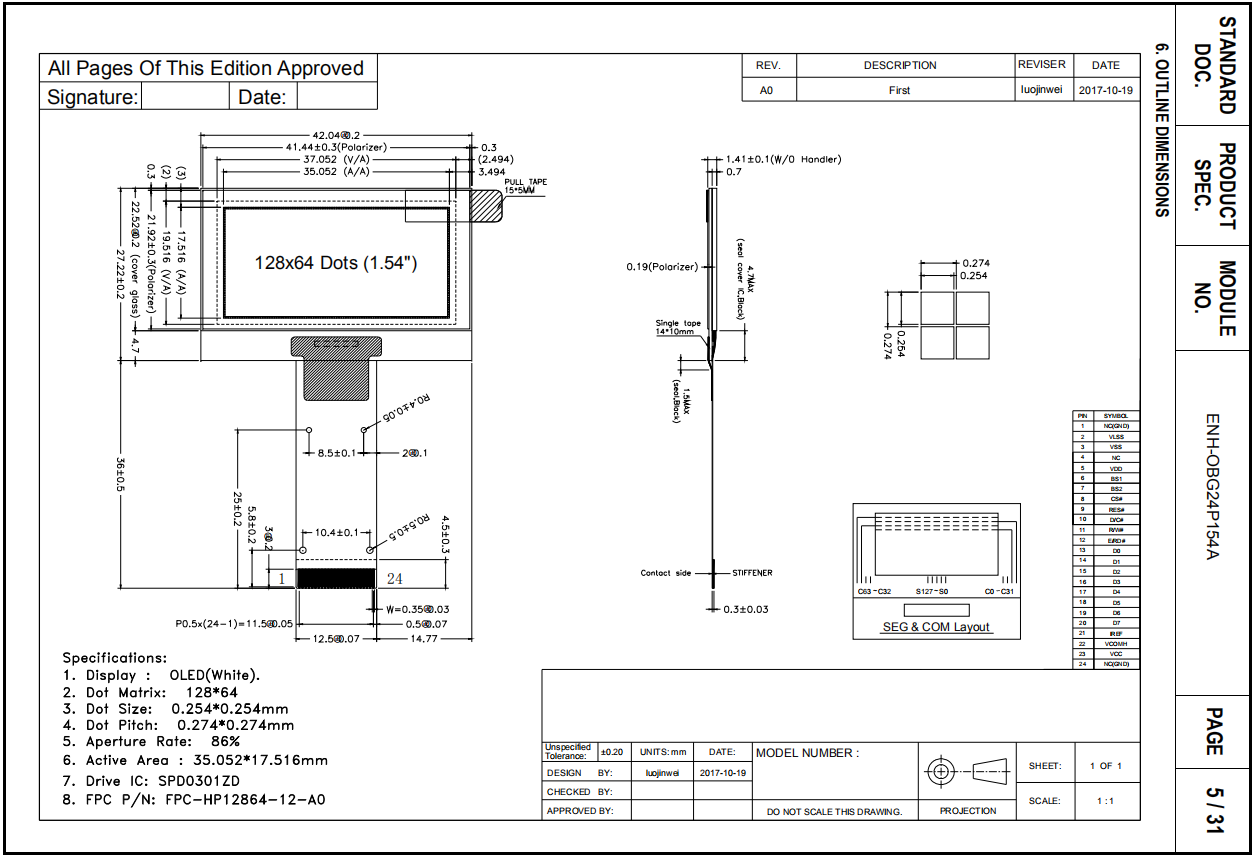

Physical Size





FAQ

+How to place an order ?

Please send us your purchase order by Email or through Whats APP directly, or ask us to send you one invoice.



+How can I get the data sheet ?

If you need the standard OLED, the datasheet will be sent to request after getting your inquiry.



+How long can I get the sample?

Samples will be ready for deliver in 5-7 days.



+Are you manufacture or trade company?

We are the manufacture specialized in TN, STN, FSTN, HTN, TFT products over 6 years.
