Products > OLED > > 0.5 inch Mini Display OLED Screen Module
0.5 inch Mini Display OLED Screen Module
0.5 inch Mini Display OLED Screen Module 0.5 inch Mini Display OLED Screen Module 0.5 inch Mini Display OLED Screen Module 0.5 inch Mini Display OLED Screen Module
Product name : 0.5 inch Mini Display OLED Screen Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



0.5 Inch 60x32 graphic white OLED displays, this module support I2C/SPI interface and has over 50,000 hour lifetime. The low power consumption is an advantage for handheld devices. This OLED module are perfectly small OLED displays that are excellent for fitness trackers or products requiring a small but high contrast display.

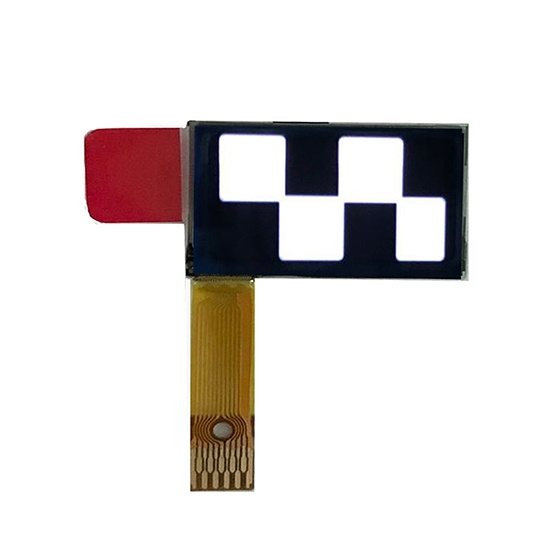

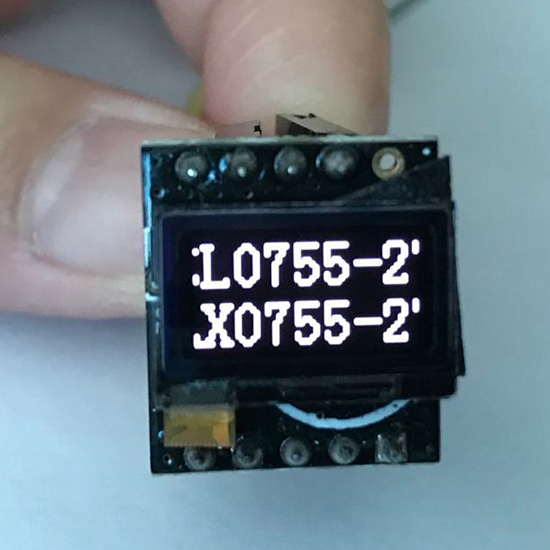

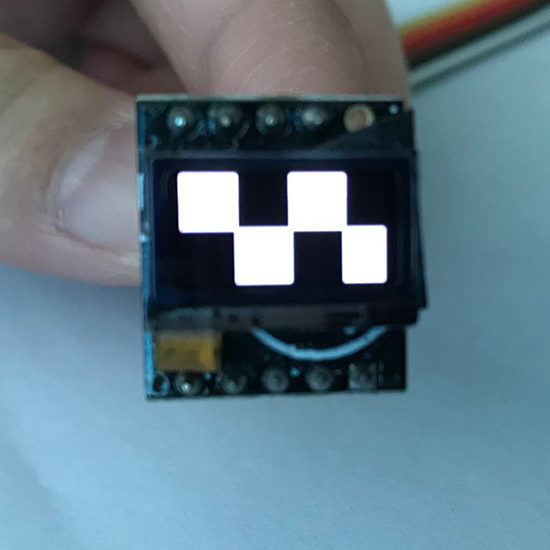

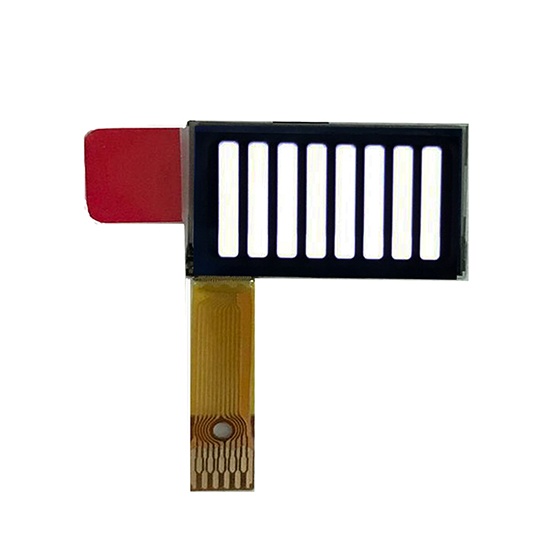

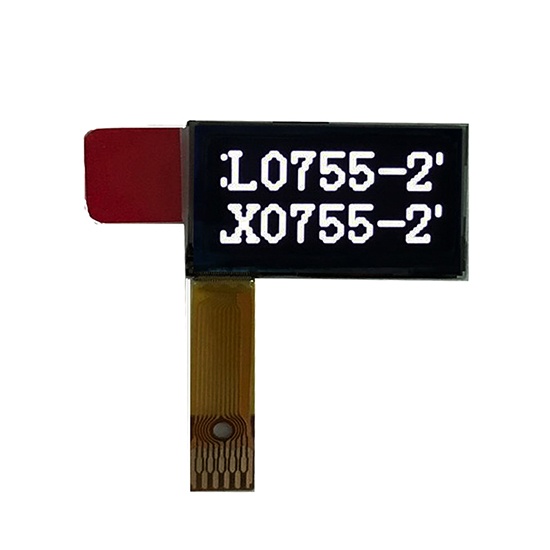

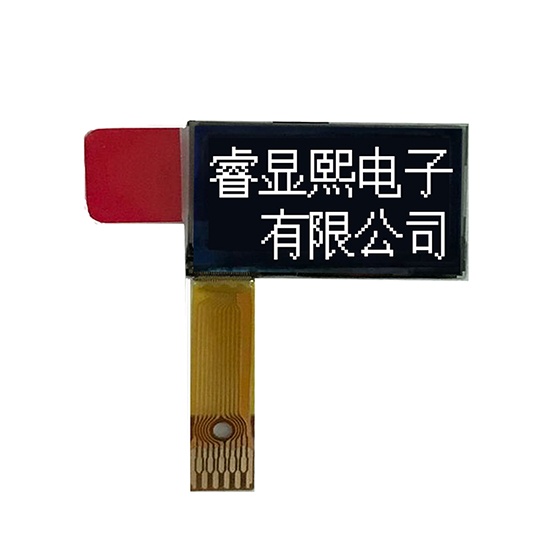

Detailed Image

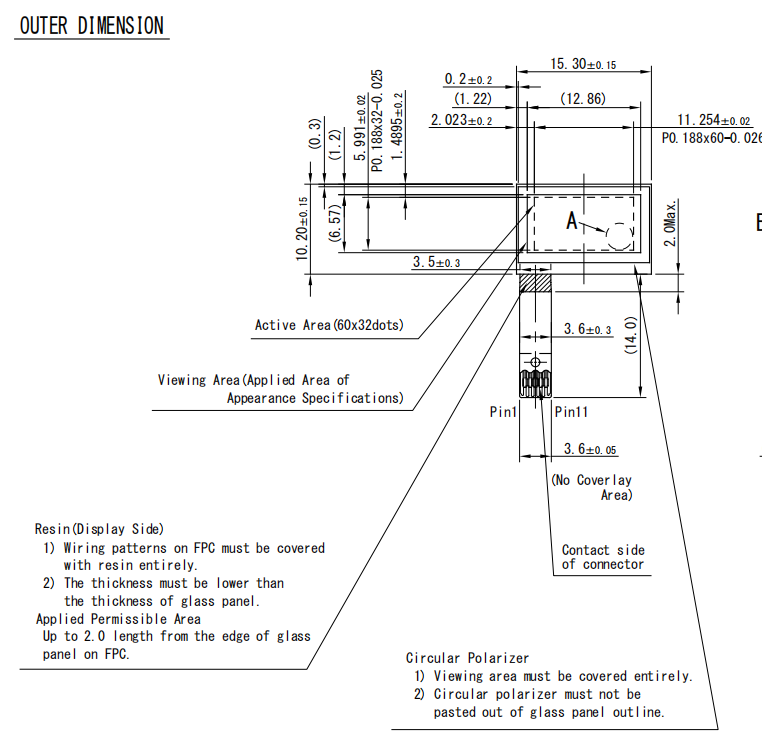

Physical Size



Key Information

0.5 inch Mini Display OLED Screen Module

Size

0.5

Control IC

LD7032

Resolution

60x32

Viewing Area

11.25*5.99 (mm)

Physical Dimensions

15.3*10.2 (mm)

Interface

IIC, SPI

PIN Number

Refer to data sheet

Display Color

White

Drive Mode

Passive Matrix

Power Supply Voltage

13V/2.8V

Module Weight

TBD

Luminance

250 CD/M2

Test Platform

1>51

2>STM32

3>STM8

4>Arduino



Why Choose Us

1. Quick drawing creation: LCD panel 3 days, LCD module 5 days.

2. Quick sample delivery: LCD panel 14 days, LCD module 25 days.

3. We have our own LCD glass production line which can guarantee high quality and low cost.

4. Warranty period: 100,000 hours for LCD panel. 50,000 hours for LED backlight.



Payment

#Payment term: T/T before shipment.

#Shipment term: Ship via DHL, FEDEX, UPS, EMS express, depends on customer's requirement.

#We accept payment via the Paypal , Alibaba.com, TT and so on, you can choose as you like.
