Products > Graphic LCD > > White on Blue 128x64 Graphic LCD
White on Blue 128x64 Graphic LCD
White on Blue 128x64 Graphic LCD White on Blue 128x64 Graphic LCD White on Blue 128x64 Graphic LCD
Product name : White on Blue 128x64 Graphic LCD
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Description

This white on blue background 128x64 pixel COG (Chip-On-Glass) graphic LCD display module has an integrated Sitronix ST7565R controller. The graphic LCD is very low power, using less than 1mA to drive the display. To connect to your host, choose parallel interface.

Prefer a different color? The ENH-DG128064-41 is dark on a light gray background.

To get started, download the free detailed data sheet in the Data sheets & Files section. Questions? Please don't hesitate to contact our knowledgeable technical support.

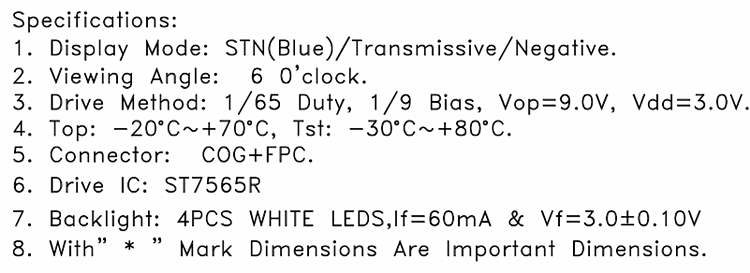

Specifications

White on Blue 128x64 Graphic LCD

Size

3.2

Control IC

ST7565R

Resolution

128 x 64 Pixels

Viewing Area

70.1x37.6 mm

Physical Dimensions

89.7x49.8 mm

Interface

Parallel

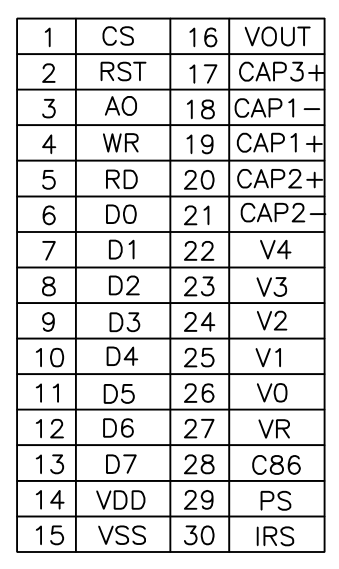

PIN Number

30 PIN

Display Color

White

Operating Temperature

-20 to + 70

VOP

9.0V

Module Weight

TBD

MOQ

1 Piece

Test Platform

1>51

2>STM32

3>STM8

4>Arduino

Applications

E-cigarette, white goods, water, sewing machine and so on.

Note: Please contact us for data sheet.

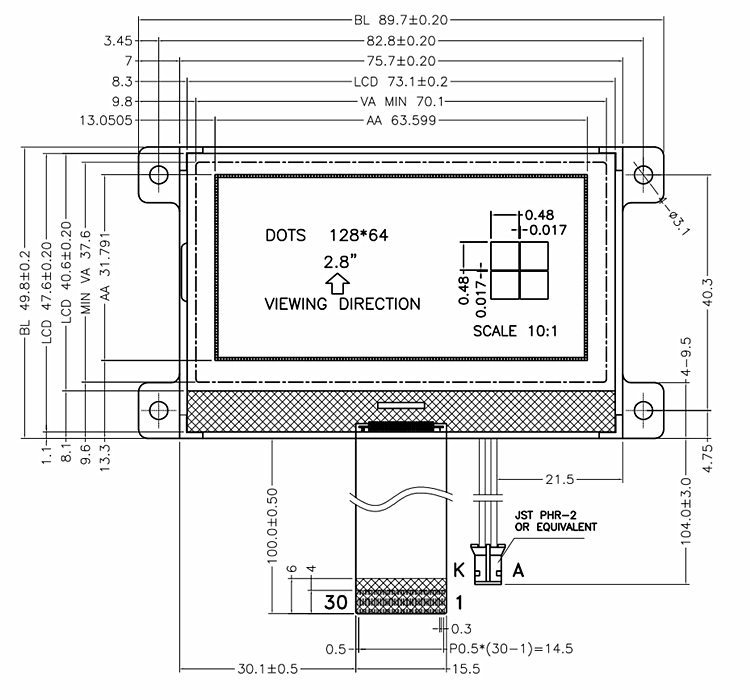

Physical Size

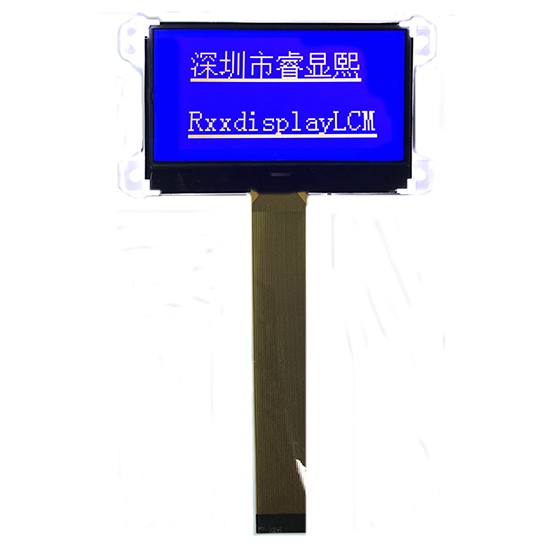

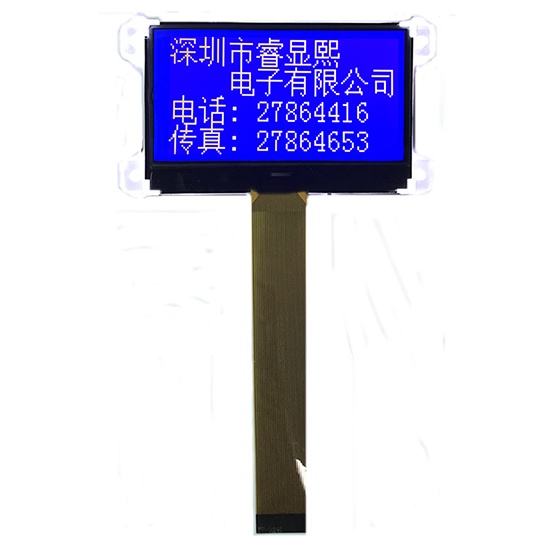

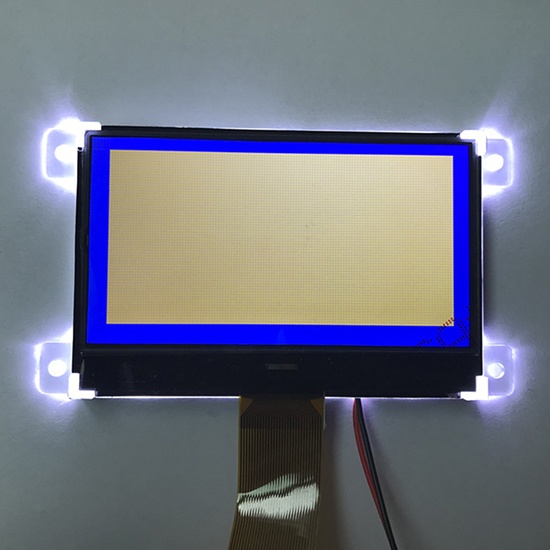

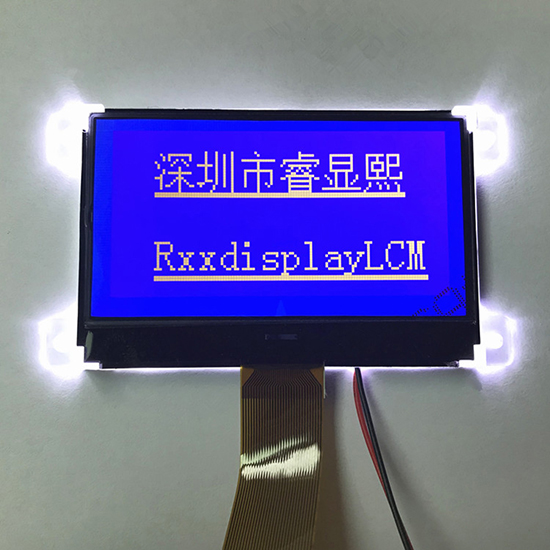

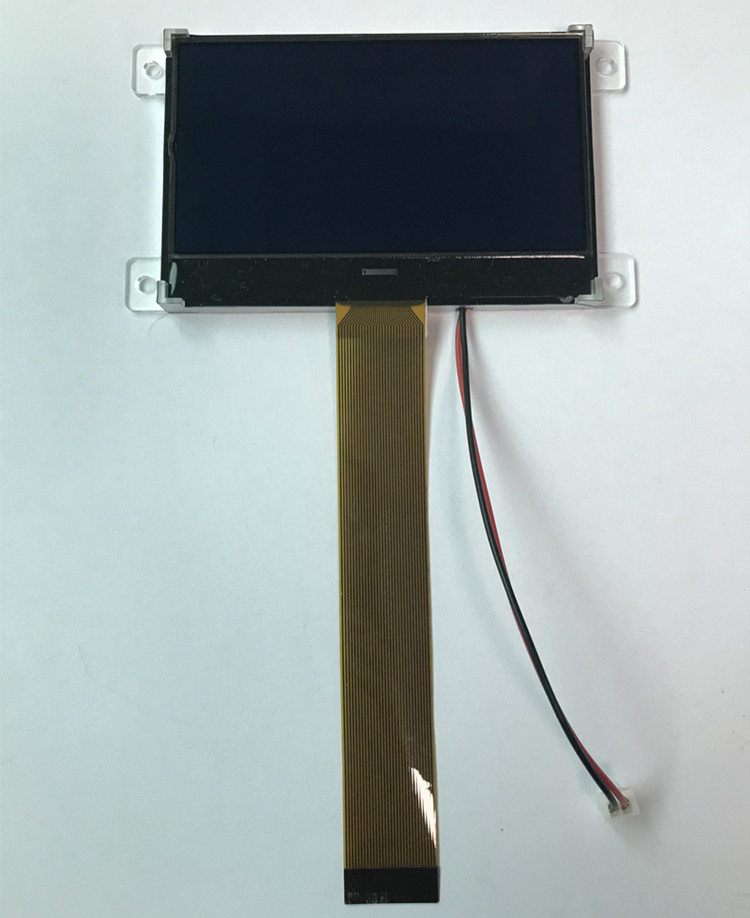

Detail Image



LCD Applications

Enrich LCD modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.

Packaging Details

-Standard package, any requirements please let me know.

-Packed in anti-static bag, more safety.

-Wrap in air bubble film

-Put into foam box

-Packed with extra carton box, which make sure the goods safety in transportation.



FAQ

# Delivery time?

Normal order 3 working days after confirming your payment, samples will be take 3-7 days.

# MOQ?

No MOQ.

#After-sale service?

Leanna is always here for you!

#Other requirements?

Please share with your problems, we will be back you ASAP.
